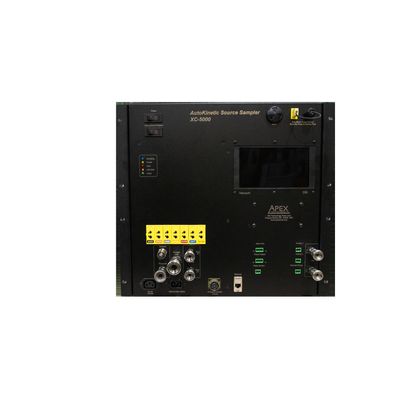

Apex - Model XC-5000 -Console

SHARE

Automated isokinetic sampling console improves data integrity. Improves precision and provides quality measurements. Rugged and lightweight roto-molded linear low-density polyethylene (LLDPE/LMDE) case with two molded-in ergonomic carrying handles. Windows-based interface guides the operator through the sampling process.

Most popular related searches
isokinetic sampling system
digital pressure transducer
automatic isokinetic sampling
low density polyethylene
digital temperature controller
isokinetic sampling
leak check
sample processing
EPA method
gas meter
  • Calculates traverse points, ideal nozzle diameter, and isokinetic rate
  • Accepts standard modules for various EPA Methods
  • Software assisted pre- and post-leak checks
  • Optional automatic pause function
  • Notifies you to move the probe
  • Alarms for user attention
  • Stores sampling profiles and data
  • English or metric units
  • Multilingual language editor
  • Sunlight-readable LED display

  • Dry Gas Meter: precision DGM, 0.7 liters per revolution, digital encoder, 2 cubic cm resolution
  • Temperature Control: integrated temperature control via the control and data acquisition board, probe, and even with solid-state relays
  • Thermocouple Display: seven temperatures displayed simultaneously on the PC user interface, °F or °C, probe, stack, oven, filter, exit, aux, and DGM
  • Digital Pressure Transducers: for ΔH, and ΔP (bi-directional), barometric
    • Pitot ΔP
      • Range: +/-2.5 inches, +/- 63 mm
      • Resolution: 0.01 inch, 0.1 mm
    • Orifice ΔH
      • Range: 0 – 5 inches, 0 – 127 mm
      • Resolution: 0.01 inch, 0.1 mm
    • Barometric
      • Range: 17.7 – 32.5 inHg, 450 – 825 mmHg
      • Resolution: 0.01 inHg, 0.1 mmHg
    • Vacuum sensor
      • Range: 0-30 inHg, 0-101 kPa
      • 2% accuracy
  • Umbilical Connections:
    • Electrical: 4-conductor circular connector, grounded shell
    • Sample line: stainless steel 1/2-inch quick connect
    • Pitot line: stainless steel 1/4-inch quick connects (optional 3/8”)
    • External pump: stainless steel 3/8-inch quick connect
    • Thermocouples: type-K standard size
  • Communication: ethernet
  • Dimensions: H23” x W21” x D12” (58 cm x 53 cm x 30.5 cm)
  • Weight: 39 lbs (17.7 kg)
  • Optional: 4-channel analog input module for logging external data (4-20ma, 0-10V, 1-5V)
  • Power: 120 V at 60 Hz or 240 V at 50 Hz (optional)
  • Console Power Requirements: 15 amp max

  • Weight: N/A
  • Dimensions: N/A
