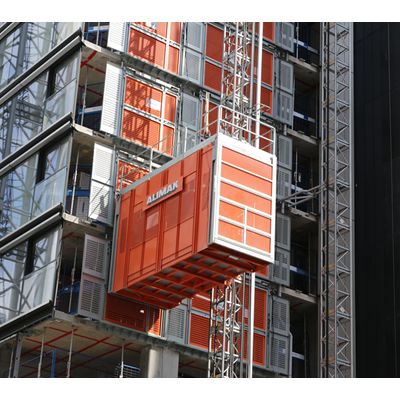

Alimak Scando - Model 650 XL -Construction Hoist
The Alimak Scando 650 XL construction hoist series is designed for efficient vertical transportation of bulky materials on construction sites. With a high load capacity of up to 3,000 kg, these hoists can significantly boost productivity. The system incorporates frequency control technology, enabling it to transport both passengers and materials at speeds of up to 54 meters per minute. For projects requiring even faster transport, speeds can be increased to 100 meters per minute upon request. Featuring large hoist cars and compatibility with all Scando 650 models, the ease of loading and unloading is enhanced. Alimak also offers maintenance services provided by trained technicians to ensure optimal performance, and connectivity and asset management solutions for monitoring efficiency and prolonging product life. Custom solutions are available, including tailored configuration drawings and calculations for strength, ground load, and anchor force, making the 650 XL range flexible for various installation requirements.
Extra large construction hoists for passengers and materials
With internal car lengths up to 5 m, a width of 2 m and a height of 2.8 m the new Alimak Scando 650 XL surpasses all existing standard construction hoists operating on a single mast.
By using a forklift truck or a board transit bench the loading and unloading of bulky materials can be done easy and ergonomically.
The Alimak Scando 650 XL can be used in single or dual car configuration. Speeds up to 54 metres per minute and capacities up to 3,000 kg can be achieved. For higher speed (up to 100 metres /minute) or capacity, the data will be specified as per actual project demand.
Adding extra large hoist cars to the 650 success
The 650 concept has been a huge success, combining productivity, reliability and a cost saving modular system with improved ergonomics and up to 40 percent decreased power consumption. With the introduction of the 650 XL, productivity will be increased further and thus save time and money.
Compatible with all 650 modules
In addition, the 650 XL has no counter weight, and can use the whole line of modules and additions available for the Alimak Scando 650 family. It can be configured (or delivered) with standard modules to suit all known project demands for vertical access from low to extreme high-rise buildings.
- Extra large cars: 10 m2 floor space with 28 m3 load space. With large capacity hoist cars, productivity will increase further and thus save time and Money.
- Flexible modular design: The hoist car design is truly modular and offers several optional lengths and multiple door and ramp choices.
- Intelligent Control: The microprocessor-basedAlimak Lift Control system ALC-II reduces waiting times substantially and solves your site logistic problems.
- Superior Comfort: Frequency control provides very smooth starting and stopping with low starting current and less wear and tear.
- Economical: Reduced cost for fleet owners and rental companies due to flexibility, durability, and accessibility, leading to low cost of ownership.
- Motor control Frequency control (FC)
- Max payload capacity 2,400–3,000 kg
- Speed 0–54 m/min. *
- Max. lifting height 250 / 400 m **
- Car width (internal) 2.0 m ***
- Car length (internal) 3.2–5.0 m ***
- Car height (internal) 2.8 m ***
- Max. load space per car 28 m3
- No. of motors 3 x 11 kW
- Safety device type ALIMAK GFD-II
- Power supply range 400–500 V, 50 or 60 Hz, 3 phase
- Fuse ratings 125 A, 160 A
- Type of mast 650, tubular steel with integrated rack
- Length mast section 1.508 m
- Weight mast section with 1 rack 115 kg
- Rack module 5
- Single And Dual Car Configurations
- Frequency Control Technology
- No Need For Counterweight
- Several Car Sizes
- Easy Loading
- Door On Long Side Of Car As Option
- 28 Metre3 Load Space
- Lifting Heights Up To 400 Metres
- Alimak Safety Device
- Intelligent Control
- Floor Space Up To 10 M2
