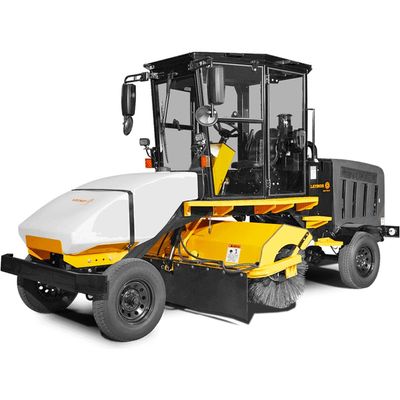

LayMor - Model SweepMaster 450-ST -Construction Street Sweeper
For the bigger jobs like a highway or larger construction project, the SweepMaster 450-ST is the construction street sweeper your customers will crave. It takes the best attributes of the SweepMaster 300 and puts them in a bigger, badder construction sweeper. The cab features more height for increased driver comfort, increased operator visibility, a forward-slant windshield to reduce dirt and dust accumulation, a tighter turning radius, multiple auxiliary power outlets, large cup holders, and a lot more, all standard. Its long list of options include a block heater and even an AM/FM stereo. For municipal use, a gutter broom, Cummins engine, and joystick control can be added to meet the needs of any road. The SweepMaster 450-ST is the rental sweeper that’s up for any challenge.
- Main Frame – all Welded 6 Channel
- Heavy Structural Steel Gussetts at Stress Points
- 6 Channel – Front and Rear Bumpers
- Rear Fenders
- Cushioned Seat with Armrest and Seat Belt
- 160 Gallon Water Sprinkling System w /Poly Tank
- LED Light Group – Turning Signals, Warning Lights and Taillights
- Turbo II Precleaner
- Hanging Rock Guard
- Brakes – Hydraulic Self adjusting rear drum brakes and Mechanical Parking Brake
- Brush Core – 8” all Steel Welded Construction – 10 x 32 Wafers – 1/2 poly 1/2 wire
- Sweeping Width – 8”
- Brush Drive – Direct Drive Motor enclosed in core, 210 RPM under load
- Core Cover – 140 degrees 14 Gauge Steel with rock Deflector
- Swing Frame – Pivot Pin
- Sweeping angle – 45 degrees left or right
- Broom Controls – Electric on dash (up/down, left/right, on/off, float)
- Hydraulic Tank Capacity – 22 US Gallons w/100 Mesh Suction Strainer
- Operating Pressure – 2,500 PSI
- Filter – Two 10 Micron replaceable Element (suction and return)
- Fuel Capacity – 30 US Gallons
- Front axle – Heavy Duty Oscillating
- Rear axle – Dana Heavy Duty Truck Type w/Drum Brakes
- Tires – 225/75/15
- Steering – Orbital Type Power Steering
- Instruments and Controls – Water Temperature, Oil Pressure, Ammeter
- Electric Hour Meter, Fuel Gauge, Reverse Alarm, Rear View Mirror, Controls for Broom Drive, Core angling, Core Height, High Speed Broom Lock, Engine Throttle, Directional Control, Parking Brake with Engaging light, Traffic Horn
- Air Cleaner – Dual Element Type with Pre-cleaner
- 7-1/2′ Scrapper Blade
- Work Lights – Front or Rear
- Strobe Light
- Spare Tire with mount
- Enclosed Cab with Safety Glass
- Front and Rear Wiper
- Cab Heater and Defroster Plenum
- Pressurized Air Conditioning
- Tachometer
- Suspension Seat
- Poly Tube Broom
- Block Heater
- AM/FM Stereo Package
- 4-inches more cab height for increased driver comfort & access
- Optimized cab geometry to increase operator visibility
- Forward-slant windshield to reduce dirt accumulation
- Improved electrical system for added control & reliability
- Optimized hydraulic system – maximum efficiency & increased reliability
- Tilt-to-open cover for full access to engine & accessories
- Ergonomic driver area – large cup holders & multiple auxiliary power outlets
- Tighter turning radius
ENGINE: Cummins® QSF2.8 Spec 4 Tier 4F 74 HP; Kubota D1105 Tier 4 Final
CERTIFIED: Rollover Structure and Canopy complies with ISO 3471
TRANSMISSION: Hydrostatic Pump and Motor, Low Gear –12 MPH: High Gear 24 MPH
WEIGHT: with Cab – 5,600 lbs
OVERALL: Length – 190``
OVERALL WIDTH: (outside of tires) – 67``
OVERALL HEIGHT: 121``
INSIDE TURNING RADIUS: 13`
HEIGHT: 7`6``
