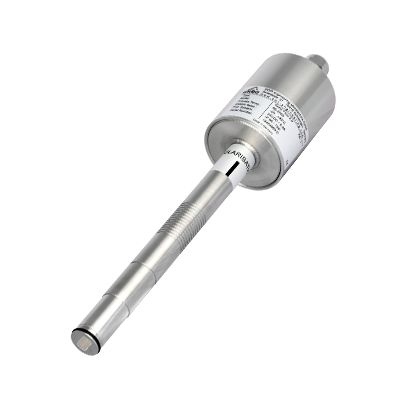

Envea - Model SolidFlow 2.0 -Continuous Solids Mass Flow Measurement Instruments
FromENVEA
Solids mass flow measurement up to 20 t/h. Continuous mass flow measurement of all types of dust, powder and granules in free fall and pneumatic conveying. Microwave sensor for on-line mass flow measurement of solids up to 20 t/h. Used in pneumatic leanphase conveying or vertical freefall after mechanical feeders.
More about this product— External link
Most popular related searches
mass flow monitoring
flow monitoring
mass flow
solids flow monitoring
flow monitoring system
pneumatic conveyor
solids flow
wear resistance
flow meter
material stream
- easy installation via weld-on socket
- for almost all types of dusts, powders, granules
- uses field-proven technology with active roping compensation
- suitable for nearly all pipe diameters
- Simple retrofitting using a welding socket
- ATEX-certified
- Almost all types of dust, powder and granules can be measured
- No installations in the material stream
- Measuring principle: Microwave
- Online flow metering
- Throughput measuring flowrates up to 20 t/h
- Active roping compensation for highest reliability
- Wear-resistant
- Biomass
- Cement
- Chemistry
- Coal plant
- Coating
- Food
- Incineration
- Minerals
- Wood
- Lime plant
- Energy
- Gypsum
- Power plant
- Foundry
- Material to measure: Dust, powders or granulates max. grain size 20 mm
- Working principle: Microwave
- Process pressure: 1 bar, optional 10 bar
- Process temperature: +200°C, optional up to +900°C
- Mounting: Via process connection
- Type of Conveying: Pneumatic leanphase, vertical freefall after feeder
- Flow rates: Up to 20 t/h
- Pipe diameter: Max. 800mm
- ATEX rating: Category 1/2
- Output: 4…20mA, Modbus, Profibus
