Rishbin - Model CZU -Copper Slitting Machine

• Inline flexible punching system integrated.
• C and Z Profile changeovers automatically.
• Dimension changeovers automatically.
• Material thickness Guage 1.5mm~3.5mm
• Straightening unit adapted to easily rectify the distortion and straightness from the bias of material.

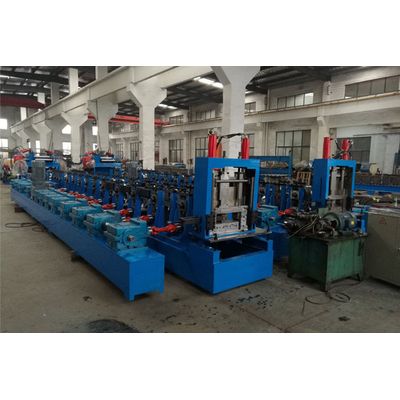

Interchangeable C/Z purlin Roll Forming Machine manufactures both Cee & Zed shaped section channels with shapes and sizes quick changed by PLC control.

For a steel structural building project, people always use Cee and Zed steel purlins (different web sizes and different flange sizes).

Production Characteristic and Use of CZU Purlin Roll Forming Machine

• One machine can produce differenct C/Z Purlins throught automatically stepless adjustment, when producing different profiles, no need to change forming rollers. In the process, machine adopt automactic control model, it can make auto pumch, cut, forming based on inputting length of purlin, holes distance, quantity, etc.
• One side fixed, the other side adjustable
• Manual or motorized servo positioning of moveable head
• Designed for efficient production of various panel widths
• It is quick and easy to operate the machine, high production efficiency, forming speed up to 20m/min.
• This machine can produce C , Z, U three profiles, through the exchange side of the roller up and down position to achieve C , Z, U purlin conversion, just need less than one minute to achieve.
