Doing - Model 100KT 200KT 500KT -Copper Wire Stripping Machine

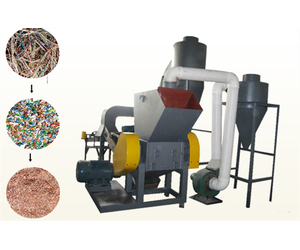

Copper wire stripping machine feature

1. Wide Application: Copper wire stripping machine  is designed to recycle various kinds of copper wire and cables with diameter between 0.2-20 mm.
2. Multi-function: Copper wire stripping machine combines the complex processes into one, including crushing, conveying, dust collecting, separating process. It can recycle both the copper granule and PVC plastic.
3. Environment-friendly: Copper wire stripping machine  has solved the pollution caused by the burning of the copper wires. With high copper recycling rate of 99.9% at least, the device is with excellent dust removal performance because of the adoption of the fully closed production model.

http://www.copperwirerecyclingmachinery.com

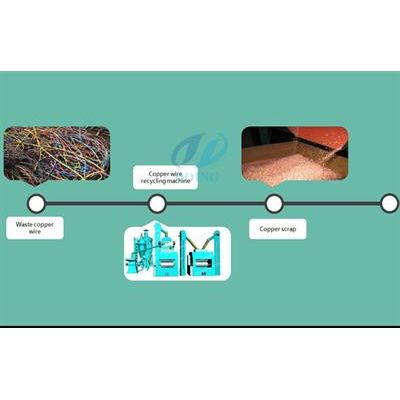

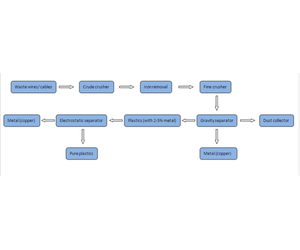

Copper wire stripping machine working process

1. Starting
Please make sure all the machines and electrical equipments are in good condition. Then start the machine, and keep the machine running unloaded for 5-10 minutes before feeding.
Attention：
Boot sequence: suction fan1→suction fan 2→blower-feeding blower →riddler→mainframe.
Shutdown sequence: Riddler→blower→suction fan1→suction fan 2→feeding blower→mainframe

2. Feeding
Before feeding, pick up the debris especially the iron from the wires in case of the damage to the crusher blades. During the feeding period, the feeding speed should be in accordance with the crushing speed.

3. Fine crushing
If there is any abnormal noise, please stop and check the crusher, or change different size screen.
If there is too much copper or the produced particles are relatively small during the production process, replace the screen and adjust the distance between the fixed knife and the moving one.
If the machine is easy to overheat, stop the device and inspect the gearing.

4.Vibrating separator
After crushed, the mixed material will be delivered to vibrating device. The copper from vibrating separator is complete copper without plastic, while the copper clad from the opposite discharging hole needs the second crushing.

This copper wire stripping machine is apply to all kinds of scrap wire, copper wire, aluminum wire, such as automobile electric line, motorcycle electric line, storage battery electric line, waste household appliance disassembly electric line, electromechanical equipment disassembly electric line, computer cable, telephone wire, cable TV line, communication cable and other scrap wires which are difficult to recycle.
