Huanyu - Model XY-1 - Core Drilling Rig

Huanyu - Model XY-1 -Core Drilling Rig

FromGuangzhou Huanyu Drilling Machinery Co.,Ltd.

SHARE

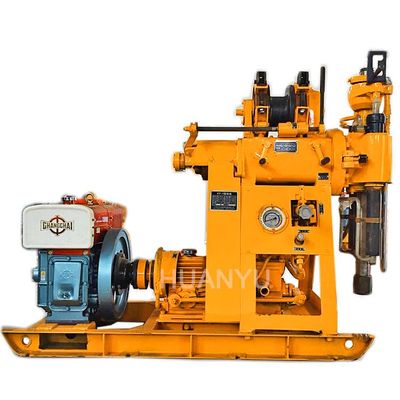

XY-1 is a hydraulic diesel well drilling machine, suitable for geological drilling, mine prospecting, geological coring, and water well drilling projects. It is compact and lightweight. The nominal drilling The depth of XY-1 core drilling rig is 100 meters; the maximum depth is 120 meters. The nominal diameter of initial hole is 110mm, the maximum diameter of initial hole is 130 mm, and the diameter of final hole is 75 mm. depth depends on different conditions of stratum.

Most popular related searches

drilling rig core

well drilling equipment

water well drill

geological drilling

Brand:HuanYu
Model:XY-1
Depths:100 meters
Power:15HP

XY-1 core drilling rig is hydraulic feed with simple operation and high efficiency.
As the ball type chuck and the driving rod, XY-1 core drilling rig can complete no-stopping rotating while the spindle relit.
The pressure indicator of bottom hole can be observed and the well conditions controlled easily.
Close levers, convenient to operate, safe and reliable.
Compact size and use same base for the installation of rig, water pump and diesel engine, just need small space.
Light in weight, easy to assemble, disassemble and transport, suitable for plains and mountain area.
