Model 1310 -Coupled Engine Compressor
Developed for entry into Tier 3 and now Tier 4 emission restriction zones, specifically USA and Canada. We offer a choice of drive engines including options from CAT, Deutz Cummins & John Deere. Custom packaging and options are available including electric drive, for underground applications.
- DESIGNED FOR ENTRY INTO US & EU MARKETS TO MEET EMISSIONS STANDARDS
- Open frame configuration
- On board fuel tank
- Booster bypass manifold (Single Stage)
- Two-way concentric valves
- Automatic scrubber tank drain valve
- Overspeed shutdown valve
- Inlet particle filter
- Water cooled booster block
- Pre-cooler bypass system
- Inlet suction manifold
- Discharge temperature sensor
- Pre-cooler (40°C) & suction scrubber tank
- Aftercooler (100°C) max operating temperature
- Low pressure switch at booster inlet
- 24 volt DC starting and operating system
- Suction and discharge safety relief valves
- Full function instrument panel monitoring all pressures, temperatures and controls with full protection shutdown and fault indicators.
- CHOICE OF DRIVE ENGINE
- Canopy / cladding
- Digital control panel (Booster)
- Top Lift feature
- Extreme cold weather start kit
- Achievement of exit temperature bogies
- Spark arrestor
- Trailer mounted unit
- Lights for night operation
- Engine speed adjustment
- Insulation package to canopy
- Service packs 250/500/1000/2000 hours
- Valve and piston kits
- Other options, pressures, capacities:
available on request - Container and rig safe models as well as other options, capacities and pressures available – consult factory.

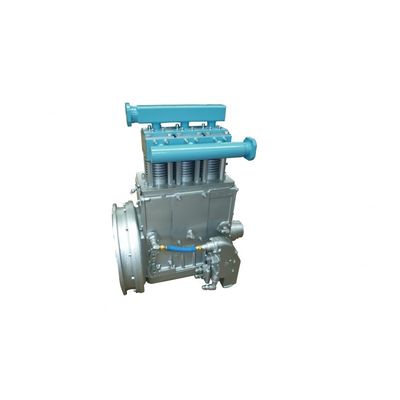

Booster type: 3 cylinders, reciprocating
Configuration: COUPLED
Model: ARC 1310 3S71
Drive engine: CAT, Cummins, Merc, Deutz - or - Client Request
Power: 225 bhp @ 1800 rpm
Booster stages: 1
Max suction pressure (psi / bar): 350 / 24
Max discharge pressure (psi / bar): 1000 / 69
Capacity at maximum suction pressure (cfm / m3/min / I/sec): 1300 / 37 / 614
Booster oil capacity (gal / I): 3.3 / 12.5
Engine oil capacity (gal / I): 4.8 / 18
Fuel tank capacity (gal / I): 169 / 640
Max operating ambient temp. (°F / °C): 125 / 52
Wet weight (lb / kg) - (approximate): 8466 / 3840
Overall dimensions, L x W x H (in / mm): 9`4" x 6`11" x 8`3" / 2850 x 2100 x 2520
Suction connection: 50mm ( 2”) BSP
Discharge connection: 40mm (1 1/2”) BSP
