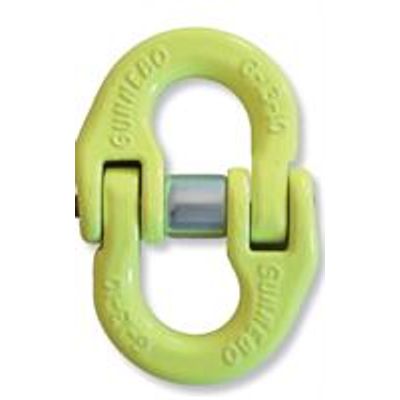

GrabiQ - Model G-Link -Coupling
Back in 1952 Gunnebo Industries launched the Coupling G-link. This invention changed the industry of lifting equipment. Prior to the G-link the standard was to use all-welded chain slings, an expensive and time consuming process as each and every chain sling ordered had to be assembled in the chain factory. With the G-link chain slings could be assembled in local sling shops closer to customers, creating more effective and flexible processes.
Besides a perfect design the G-link is equipped with a special pin retention system. The pin has a recession in the middle where the locking bush holding a helicoil shaped spring lies. The design of the pin, spring, and bush guarantees safe retention of the locking bush, in case the wire of the spring should break.
Clear markings
- Country of origin.
- Traceabllily code.
- Model, size and grade.
Quality is top priority
- Fatigue tested.
- Forged alloy steel.
- Quenched and tempered.
- Steel from european suppliers.
- 100 % proof load of each G-link.
- 100 % Eddy current testing of pins.
- 100 % dimension control of pins with vision technology.
Safety is our highest priority
- To keep the pin securely in place every loop of the square shaped wire locking spring actively creates maximum locking effect.
- Every part of the locking spring - even if the wire should break - is still active to hold the pin.
