Ruhrpumpen GmbH

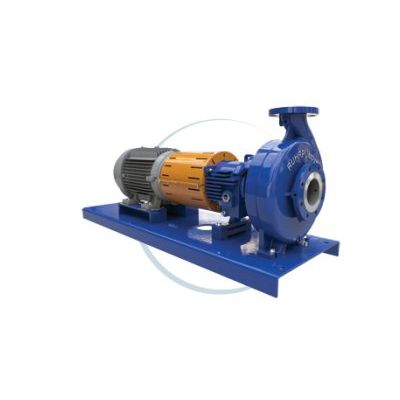

CPP-21
FromRuhrpumpen GmbH
The CPP-21 line is designed to meet and exceed the ANSI B73.1 M specification. Like all CPP-21 pumps, they are designed around a single, basic hydraulic and mechanical design concept which assures the greatest efficiencies across the broad range of operating conditions, the greatest application flexibility and superior interchangeability.
Most popular related searches
single stage horizontal centrifugal pump
water treatment operations
oil level monitoring
horizontal centrifugal pumping
horizontal centrifugal pump
ANSI pump
level monitoring
pharmaceutical water
centrifugal pumping
split case
- Single stage horizontal centrifugal pump.
- Radially split casing with flanged connections horizontal end suction and top discharge on the center line, enclosed impeller, clock-wise rotation (viewed from coupling end).
- Foot mounted.
- Oil lubricated.
- ANSI std. B-73-1 (OH1).
- “Back Pull Out” design for ease of maintenance, allows for removal of pump assembly without disturbing casing flange connections.
- Standard or large bore stuffing box selection allows for use of packing, and all designs of single or double mechanical seals.
- Close Coupled assembly available.
- Options for high and low temperature available.
- All Ductile Iron.
- Ductile Iron/Stainless Steel.
- All 316 Stainless Steel.
- Alloy 20, Hastalloy and other materials available upon request.
- 125#, 150# 300# RF or FF flanges per material allowances.
- Heavy duty solid SS shaft standard for minimum deflection.
- Large oil sight glass on both sides of the bearing unit for ease of oil level monitoring.
- Standard steel, Non Metallic, PIP and other base plate designs available.
- Zirconium.
- Capacity up to 1,150 m³/h
- (5,000 U.S. gpm).
- Head up to 235 m (770 ft).
- Discharge flange size 1`` to 8``.
- Maximum Pressure 26 bar (375 psig).
- Temperature -45 to 315 ºC (-50 to 600 ºF).
- Petrochemical.
- Oil & Gas.
- Steel Industry.
- Automotive.
- Food Processing.
- Power generation.
- Pharmaceuticals.
- Water treatment.
