SINOVO - Crawler Core Drilling Rig

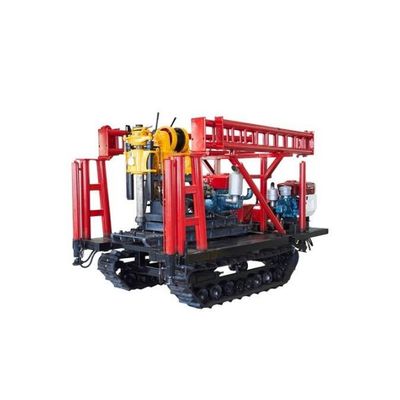

The series spindle core drilling rig is installed on the crawler drilling rig, which is a portable high-speed hydraulic drilling rig. It is easy to move and has high efficiency in coring operations.

Scope of application

Engineering geological survey of railways, hydropower, highways, bridges, dams, etc.; geological core drilling, geophysical prospecting; small grouting and blasting drilling.

Structural features

The drilling rig consists of a crawler chassis, a diesel engine and a drilling body, all of which will be mounted on a frame. The diesel engine drives the drilling rig, hydraulic oil pump and crawler chassis, and the power is transmitted to the drilling rig and crawler chassis through the transfer case.

Main Feature

1. Equipped with rubber crawlers, the drilling rig is easy to move. At the same time, the rubber track will not damage the ground, which is convenient for urban construction.
2. The hydraulic oil supply system is adopted to improve drilling efficiency and reduce labor intensity.
3. The hexagonal ejector rod is used to achieve high-efficiency drill pipe clamping. Easy to operate, safe and reliable.
4. Through the bottom hole pressure indicator, it is convenient to observe the well condition.
5. With hydraulic mast, easy to operate.
6. The handle is closed, easy to operate.
7. The diesel engine is started by the electric motor.
