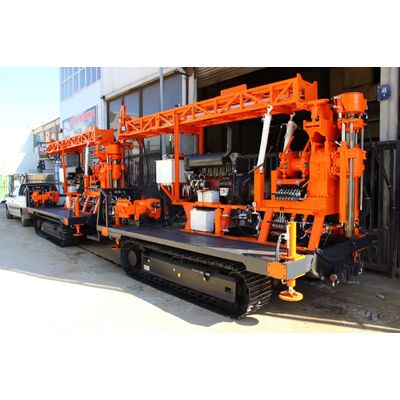

Melis Sondaj - Model MS 750 -Crawler Drilling Machine

ENGINE
Engine: DEUTZ F4L912 4 CC air cooled
Displacement: 3,7 Lt.
MAX. Power (2300 RPM): 50 kW ( 64 Hp )
Fuel tank capacity: 25 L (Optional)
Transmission: Manual control from gearbox

SPINDLE OR CHUCK
Chuck travelling: 75 cm
Chuck rotation: 360°
Max. Pulling Force: 9000 kg
Max. Thurst Force: 6000 kg
Spindle Shaft Inner Diameter: 101 mm
Jaw Specifications: Double Jaw (Hydraulic and Mechanic)
Transmission of Gear: Helix

DRILL MAST
MAST FEATURES (optional):

• Opened As A Telescopic Mast assembly
• Hydraulic mast dump
• Hydraulic mast raising
• Mast lenght : 7 m

Feed Lenght: 28 cm
Main Winch: Drum capacity : 12 mm to 25 m
Wireline Winch: Hydraulic wireline winch
Drum capacity : 500 m Ø 6 mm cable
