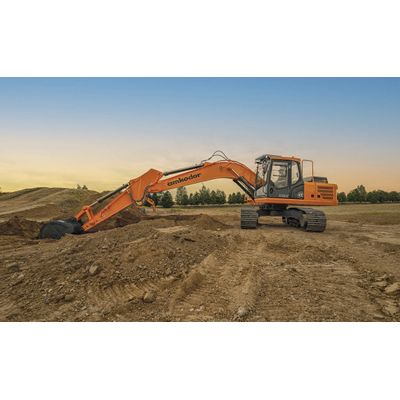

AmkodorModel XC231LC -Crawler Excavator

SHARE

Crawler excavator AMKODOR XC231LC is designed for excavation of construction pits, trenches, open cast mines in soils of category I-IV, handling bulk materials, ripped rocks and frozen soils, for operation in macroclimatic conditions with a moderate climate in ambient conditions from plus 40 ° C to minus 40°?.

Most popular related searches

ENGINE

Model – D-260.9S2

Manufacturer – Minsk Motor Plant

Rated power, kW (hp) -132 (180)


TRANSMISSION

Hydrostatic – closed with adjustable pump and hydraulic motors

MAXIMUM TRAVEL SPEED, KM/H:

transport – 6.0

process – 3.5

Type of travel gearbox – Planetary


HYDRAULIC SYSTEM

Hydraulic system: 2-pump with open center adjustable pumps, K3V series negative control, two cartridge travel motors and a cartridge swing motor

Swing system: differential

Service brakes: closed circuit of hydrostatic transmission

Parking brake system: permanently closed disc brakes with hydraulic release located inside track gearboxes

PLATFORM SWING SYSTEM

Swing gear type – Planetary

Max RPM of swing platform, rpm – 11.6

CRAWLER

Track width, mm – 600 (800)

Crawler track, mm – 2390

Crawler base, mm – 3640


ELECTRICAL SYSTEM

Voltage, V – 24


CABIN

Type – Closed, detachable

ROPS/FOPS – Integrated

OVERALL AND WEIGHT SPECIFICATIONS

Rated bucket capacity, m³ – 1.0/0.6*

Bucket width, mm – 1330/1960*

Digging depth, mm -6720/9550*

Digging height, mm – 9780/11420*

Dump height, mm -6680/9640*

Digging radius at the standing level, mm – 9880/13085*

Length, mm – 9665/11640*

Width (with crawler 600/900), mm-(2900/3200)/(2900/3200)*

Swing platform width, mm – 2700

Height in transport position, mm -2960

Cabin height, mm -2960

Operating weight, kg – 23000/24500*

* standard working attachments/extended working attachments
