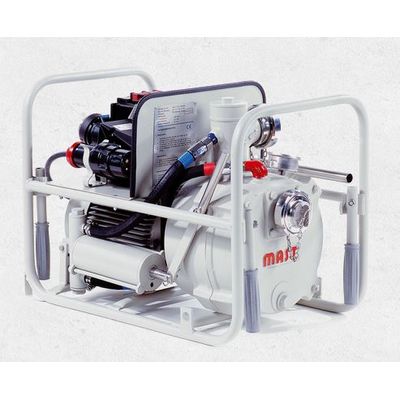

Mast Pumpen - Model GUP 3-1,5-S DIN 14 427 (DN 50) -Dangerous Goods Pump
FromMast Pumpen GmbH
In potentially explosive areas of zones 1 and 2 for aggressive and flammable liquids within the scope of resistance. All media-carrying parts made of stainless steel 1.4408 and 1.4571 (V4A) and fluororubber FKM (Viton). Max. Temperature of the conveying medium: 40 ° C.
Most popular related searches
- Engine: 3 ~ 400 V three-phase current
- Power P1: 3.0 kW
- Rated current: 4.55 A
- Weight: 81 kg
- Delivery rate Q (max.): 620 l / min
- Connection size: G 2 ″ DN 50 DIN 11851 - alternatively TW or C couplings possible
- Grain passage: 10 mm
- Connection line: H 07 RN-F 5G1.5 (1.5 m)
- Connector: CEE 16 A 5-pole EEx
