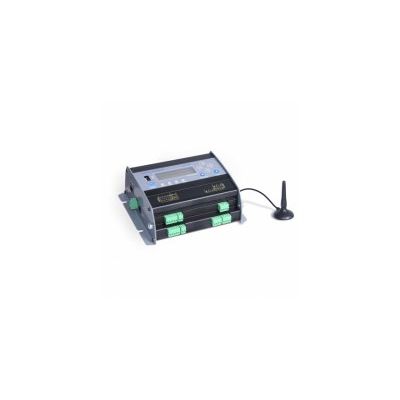

Model mLog08.0 -Data Logger
The mLog 08 data logger family represents a comprehensive set of data logging devices. Rugged, stand alone, low power data logger with Built-in Web Server. 5 multi purpose, full isolated analog input channels, each allowing 1-3 separate voltages to be measured. Capable to connect most types of sensors like thermocouples, RTDs, thermistors, voltage, current, 4-20mA loops, resistance, bridges, strain gauges. High-precision differential inputs with 18-bit resolution.
Most popular related searches
data logger
power data logger
self-contained data logger
strain gauge
SCADA system
SDI sensor
Thermocouple sensor
thermocouple
integrated GPRS modem
SCADA
- Rugged, stand alone, low power Data Logger with In-built Web Server
- 5 universal, full isolated analog input channels, each allowing 1-3 separate voltages to be measured
- capable to connect most types of sensors like thermocouples, RTDs, thermistors, voltage, current, 4-20mA loops, resistance, bridges, strain gauges
- high-precision differential inputs with 18-bit resolution
- expandable up to 100 analog inputs
- 12 digital I/O-channels, including high-speed counter and phase encoder inputs
- 2 serial ports (RS232 or RS422/485), ready to use to connect serial input/ouput devices
- support for SDI-12 sensor networks
- Modbus slave and master functionality allows connection to MODBUS sensors and to SCADA systems
- interface for CAN bus applications (optional)
- TCP/IP Network communication via Ethernet, point to point protocol via USB, RS232 or external dial up modem, integrated GSM/GPRS/EDGE/WCDMA modem (optional)
- Built-in web and FTP server for remote access to logged data, configuration and diagnostics
- Internal data storage of 128 MB for approx 10.000.000 data points
- USB memory stick support for easy data and program transfer
- Graphical user interface for quick and easy configuration
- Includes a powerful programming language which allows development of complex systems
- Built in 1.2 Ah buffer battery
- Rugged design provides reliable operation under extreme conditions (‑45°C to +70°C)
- Other models with extended hardware features are available, especially for Geotechnical applications
