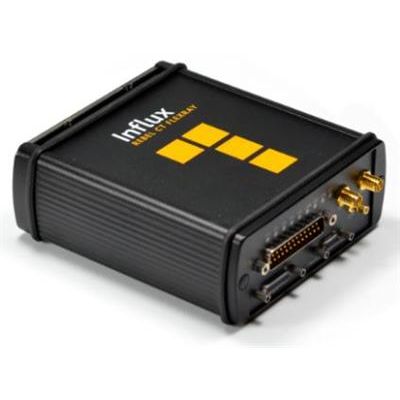

Influx Rebel FlexRay - Model CT -Data Logger
The Rebel CT FlexRay is our most powerful data logger yet. It is a low cost solution to expand into FlexRay data logging. This palm sized data logger can be configured to collect synchronised CAN, LIN, FlexRay, digital, analog and thermocouple data.
Most popular related searches
- 8x K-type thermocouples (via H-box not supplied)
- 7x analog inputs
- 1x K-Line
- 2x FlexRay channels
- 3x LIN buses
- 7x CAN channels
- Includes internal 18Hz GPS with socket for external antenna
- Includes internal 1kHz XYZ accelerometer +/-16G max
- 4x digital I/O channels
- 4x analog input channels (calibration tool supplied)
- Connects to Module Analyster for on-line CAN Analyser functionality
- J2543 Pass thru drivers available
- SDHC card data storage max size 128GB
- IP65 Dust and splash proof cover – SD card securely housed behind a flip panel
- Supplied with Dialog Configurator, freely distributable data logger configuration application for Windows
- Internal Wi-Fi Module
- Internal 3G Modem

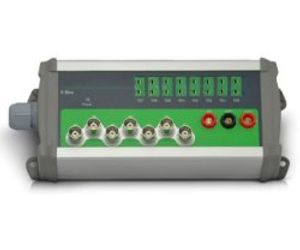

- H-Box Instrumentation break out box for K-type thermocouple and analog inputs
All Influx Technology products are developed and supported by our dedicated and highly experienced team.
