VPT, Inc.

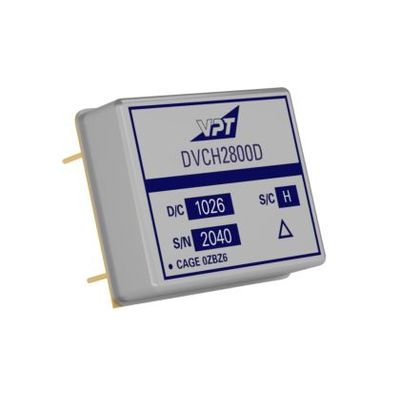

Model DVCH2800D -DC-DC Converter
FromVPT, Inc.
The DVCH Series of DC-DC converters delivers just 1.5 watts in the most efficient, small-size package available today for use in critical-reliability applications. The extra-wide input voltage range, very low output noise, and high reliability ensures the DVCH is the perfect low power choice for your next space or avionics program.
Most popular related searches
- Dual outputs of ±5, ±12, ±15
- Extra-wide 12V to 50V input range with 80V transient per MIL-STD-704
- Up to 1.5W output power
- Full operation over -55 °C to +125 °C military temperature range
- Fault tolerant design with patented technology – no optoisolators
- Very low input/output noise
- High reliability magnetic feedback circuit
- Tiny size 0.975″ x 0.8″ x .27″ and light weight (11g)
- Host of circuit protection features
- Fixed switching frequency
- Available qualified to MIL-PRF-38534 Class H, DLA SMD #5962-09243
- Manufactured in an MIL-PRF-38534 Class H and Class K, and SAE AS9100 certified manufacturing facility
- MIL-STD-704A input voltage requirements
- DO-160
- MIL-STD-883 military and space environmental screening available
- MIL-STD-461 C-G when used with a VPT DVMSA EMI filter
