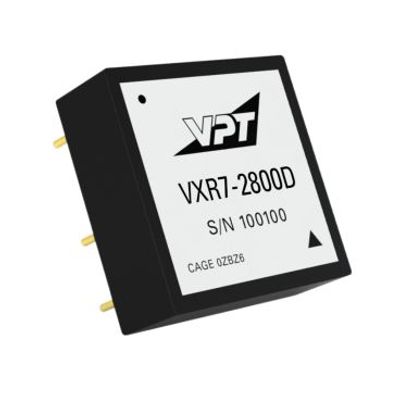

Model VXR7-2800D -DC-DC Converter
The VXR7-2800D is optimized for a broad range of applications from military ground vehicles to commercial and military aircraft and is intended for harsh environments including severe vibration, shock and temperature cycling. The VXR series is highly efficient with a low noise, fixed frequency, wide input voltage range topology. Two independent fully isolated outputs provide zero cross regulation and allow for multiple standard output voltage combinations. The VXR series patented epoxy encapsulated V-SHIELD® packaging is highly resistant to chemical, solvent and salt environments and is fully compatible with high volume manufacturing processes including wave solder, cleaning solvents, high pressure sprays and aqueous wash processes. A unique integral six-sided metalized shield improves system EMI compatibility. Dual sided conduction cooling coupled with reduced power dissipation simplifies system thermal design.
- Wide input voltage range: 9 V to 60 V
- 6 V to 80 V transient operation, 100 V for 200 milliseconds
- Dual outputs of 3.3V, 5V, 12V, and 15V
- High efficiency
- Rugged epoxy encapsulated V-SHIELD® package
- Fully compatible with aqueous cleaning processes
- -55 °C to +105 °C operation
- Integral six-sided metalized EMI shield
- Dual-sided thermal conduction
- 2000 V isolation
- Fixed frequency
- Low noise
- Output current limit protection
- Short circuit protection
- Multiple standard output voltage combinations
- Zero cross regulation
- MIL-STD-1275 A-E
- RTCA / DO-160-Section 16
- MIL-STD-704 A-F
- MIL-STD-461 C-G when used with an appropriate VXR EMI filter
- RTCA / DO-160-section 18 and 21 when used with an appropriate VXR EMI filter
- Testing to MIL-STD-883
- J-STD-001, SAE AS9100, IPC-A-610 Class 3 manufacturing
