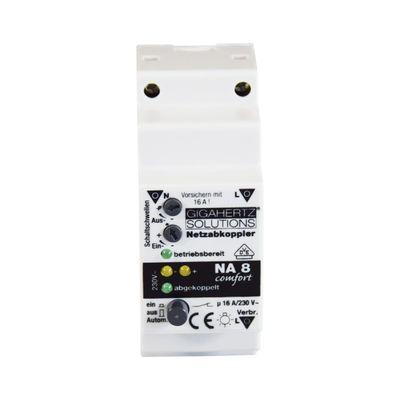

Gigahertz - Model NA8 Comfort -Demand Switch
All common advantages of the demand switches are fulfilled. Reduces electromagnetic alternating fields. In addition to all functions of the NA7: Adjustment screws for a manual adjustment of the switch-on and switch-off thresholds. Provides more DC current to compensate for leakage currents or the operation of larger glow lamps. Line filter and control lamp included.
Item weight: 0,20 kg
Frequenzbereich:
Scope of delivery:
Demand switch
System control lamp
Line filter X21
Installation instructions
Measurement range:
Nominal voltage/load: 16 A, 230 VAC +/- 10 %.
3500 Watt light bulb load
Mechanical life of relay: approx. 15,000,000 operations
1-pole disconnection: for optimum personal protection and minimum residual ripple
Overcoupling is optimally diverted by a low impedance output
Precision:
< 4 mV
Monitoring voltage: Low-current DC voltage compatible with building biology (max. 8 mA / 230 VDC)
Garantie:
VDE mark, ID number: 40000677
Safety: Overvoltage proof according to IEC 1000-4-4 (Burst) and IEC 1000-4-5 (Surge)
Clearance and leakage distances according to EN 600065 / VDE0860 are met
Housing: Rail mounting according to DIN-EN 50 02
