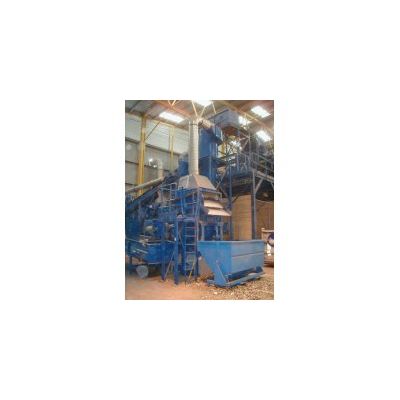

Densimetric Table

Domaine d’application

The densimetric table is used for maturing compost, rubble, timber, separation of homogenates industrial minerals ... etc..

It works on an input size from 50μ to 80mm.

Nomenclature

1. Collecting cyclone of ultra light,
2. Frame support of the cyclone
3. Lock rotary extraction of ultra light,
4. Ventilator of fluidization,
5. Ventilator of aspiration
6. Sheath connection,
7. Frame support of the densimetric table,
8. Wind box,
9. Hopper of evacuation of the light fraction,
10. Hood of collecting of dust,
11. Alimentation hopper
12. Inspection door with port-hole,
13. Hopper of evacuation of the heavy fraction,
14. Bottom of treatment,
15. Rods,
16. Motorization of the bottom of treatment

These values are given as an indication on the basis of product having a granulometry 0-30mm, a density of 300Kg/m3 and a water content lower than 40%.

All the guaranties of separation and of time capacity must be confirmed by a series of tests carried out in our office on the basis of the product to treat.

Maintenance
Two port-holes rep.12 give the visual control and access to the bottom of treatment rep.15 in order to facilitate maintenance. Several trap doors are also located on the network of sheath rep.7 and the cyclone rep.1.
