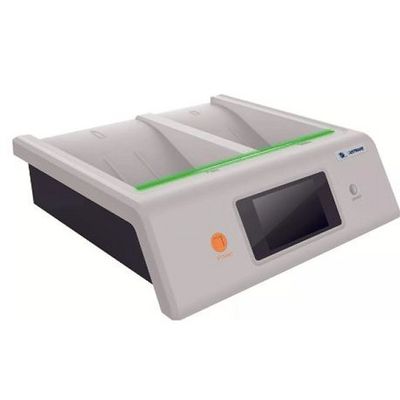

Eastimage -Â Model EI-TD500 -Desktop Liquid Detector
The EI-TD500 is a safety inspection device specifically designed for liquid safely inspection. It uses dielectric constant technology and heat transfer technology to detect liquids in nonmetallic and metal containers, which meet materials and thickness requirements, without opening the container, it can rapidly detect the plastic, glass, ceramics, metal and flexible packaging containers for liquid, and separates them from water, cola, milk, fruit juice and other safe liquid distinction This product has passed the safety alarm system products quality supervision test and examination by the Ministry of Public Security. And it also has been applied in multiple important infrastructures and urban railway systems.
Automatic operation, do not require the manually reset and manual interpretation; Can automatically reset after the alarm, and continue to do the next detection. Short detection time and high efficiency. Large storage capacity: can store more than 100,000 records. Automatic counting function: to count every piece of liquid items and alarm liquid items separately, and also separately count for metal detection and non-metallic detection. Able to send the detection data, alarm information and equipment status through the network at real time. Allows to detect the metal container and non-metallic container at the same time without interference.
- Detection Objects ; Flammable liquid in the sealed container
- Detectable Container Materials ; Plastic/ glass/metal/ceramic/paper{no aluminum foil coating)
- Detecting Speed ; ..Plastic/glass container: 1 - 2 seconds Metal container: 2 -5 seconds Minimum
- Detection Amount ; 100ml
- Selectable Detection Mode ; Vials, ordinary and special bottles
- Alarm: Audible alarm, indicator alarm, LCD screen
- Equipment Dimension ; 400mm (length) x 403mm (width) x 120mm (height)
- Power Consumption ; 45W
- Weight: About 4.6 kg
- Boot Time: 3.6 s
- Data Transfer: USB. RJ45, WiFi and other communication interface Environment
- Temperature ; -10-55°C
- Relative Humidity: 10%-95%
- Power Supply: AC100-240V(50/60Hz)
It can detect liquid explosives, flammable, corrosion and other liquid dangerous good, including gasoline, diesei, nitroglycerin, nitromethane, dichloroethane, toluene, benzene, nitrobenzene, acetone, methanol, ethanoi, ethylene glycol. Ethyl ether, isopropyi ether, sulfuric acid, nitric acid, hydrochloric acid, hydrogen peroxide (30% hydrogen peroxide), isopentane, pyrrolidine, methyl acrylate, ally chloride, cyciohexanone, cyclopentane, Ether, 1,4-dioxane, 1,3,5-trimethylbenzene, styrene (cool), diethyiamine, n-propyl acetate, piperidine, butanone and other hundreds of dangerous liquids:
