DevProbe1 - Deviation Probe

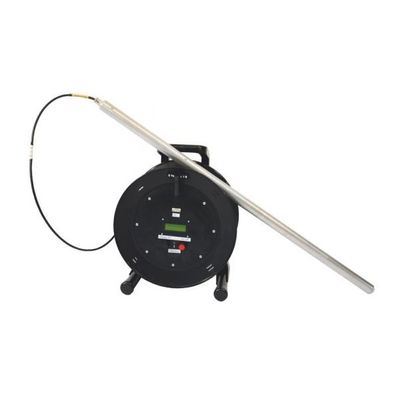

The Deviation Probe DevProbe1 is used to measure the borehole deviation. A three-axis magnetometer measures the azimuthal direction of the borehole and a dual tilt sensor provides information about the inclination. The probe is sealed and temperature compensated. Borehole deviation is required to determine the precise XYZ location of a seismic source or geophone inside a borehole. A software is provided to visualize and store the deviation data.
Most popular related searches
three axis magnetometer
borehole logging system
downhole tool
borehole diameter
seismic tomography
drilling regulations
borehole logging
borehole
seismic
borehole software
Drilling direction is needed where precise XYZ location of a downhole tool is required. The DevProbe1 borehole logging tool is designed to provide drilling deviation and inclination for numerous applications like seismic tomography and crosshole testing.
- Operational depth: Up to 150 m
- Probe length: 1235 mm
- Probe diameter: 40 mm
- Probe weight: 3.45 kg
- Cable weight per metre: 62 g
- Cable strength: 1700 N
- Borehole diameter: 50 mm
- Azimuth range: 0 - 360°
- Azimuth resolution: 12 bit (<0.5°)
- Tilt range: 0 - 70° (linear corrected)
- Tilt resolution: 12 bit (<0.2°)
- Temperature range: -30 to -85°C
- Depth indicator: Cable marker every 1 m
- Storage: On drum
