Model Titan -Diamond Core Drill

• Heavy duty design


• 260 HP QSB6.7 Cummins Diesel

• 25,000 lbs. Hoist

• Available Track Mount

DEPTH CAPACITIES: Based on max pullback & a 25% safety factor

N: 5390 ft / 1643 m

H: 3675 ft /  1148 m

P: 2415 ft /  736 m

PRIME MOVER

Standard unit: Cummins QSB6.7, 6.7 L, 6 cylinder, turbo charged diesel engine

Power: 260 HP @ 2200 RPM

ROTATION UNIT

Standard unit: XP drill head w/ Christensen chuck

Maximum opening: 4-5/8" (P size)

RPM: 1400 RPM

Torque: 6385 ft lbs

Chuck: 40,000 lbs capacity

Hydraulic motor: Rexroth 160cc variable speed/torque piston motor

Gear ratios: 6.27:1, 3.12:1, 1.75:1, & 1:1

FOOTCLAMP

Standard unit: Christensen hydraulic open/spring closed

Maximum opening: 4-5/8" (P size)

Capacity: 40,000 lbs.

MAST AND FEED

Feed stroke: 132"

Pullback: 37,700 lbs.

Pulldown: 16,490 lbs

Drill angle: 45 to 90 degree

Tower: 10 ft or 20 ft rod pull capacity

WATER PUMP

Standard unit: W1122B-CD (435) piston pump

Capacity: 37 GPM @ 1000 PSI

WINCH

Wireline winch: Hydraulic motor direct drive

Capacity: 5000 ft of 3/16" cable

Level wind: Standard

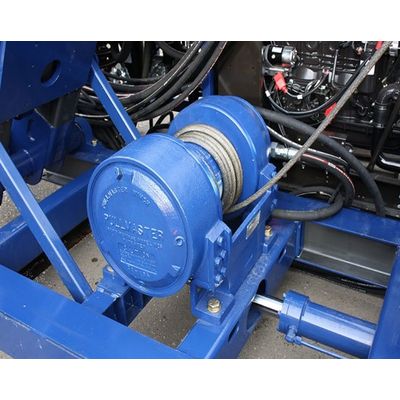

HOIST

Hoisting winch: Pullmaster M25

Hoisting force: 25,000 lbs.

Capacity: 75 ft of 18mm cable

HYDRAULIC SYSTEM

Controls: Fully hydraulic, no electronics

Rod handling: Sychronized chuck & footclamp w/ additional chuck control

System pressure: 4000 PSI

Filtration: 10 micron

Components: Sauer Danfoss, Valvoil, Rexroth & Parker

Heat exchanger: Water:oil

Optional: Air:oil heat exchanger

INCLUDED COMPONENTS

Mud mixer c/w whip lines

4000 ft of W/L cable

1 set of rod and casing jaws/bushings

WEIGHT 11,640 lbs.

OPTIONS

Tracked carrier

Skid w/ stabilizer cylinders

Diesel driven supply pump

Enclosed drill shack

Mud tank

French/Spanish labels & manual
