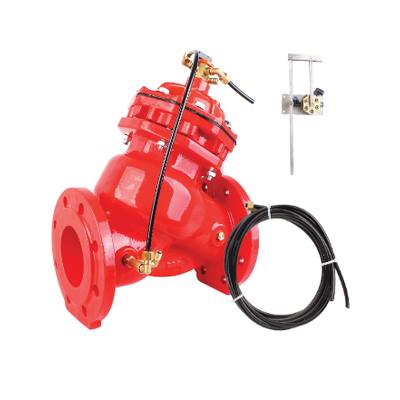

BKV Valve - Model YF16DFV -Differential Float Level Control Valve

The BKV 216 Series differential float level control valve is a hydraulic control valve that can control the water level in tanks or reservoirs within desired ranges. Thanks to the 4/3-way differential control pilot mounted in the control chamber of the main valve, the main valve closes smoothly and completely leak-proof when the water level reaches the desired maximum level. The maximum and minimum water levels in the tank or reservoir can be easily adjusted to the desired value within a very wide range. Due to this feature, the pump does not constantly switch on and off during level control in tanks or reservoirs fed by a pump. The valve maintains a constant water level within the desired range without being affected by flow rate and pressure changes. It can be easily used in tanks or reservoirs fed from the bottom or top.
