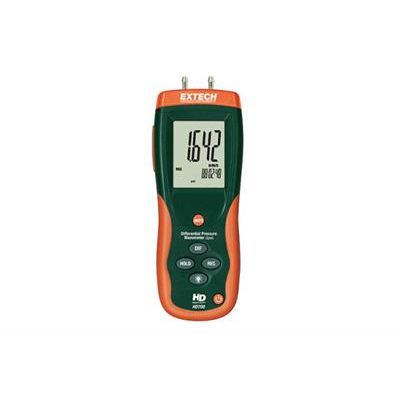

Extech/Flir - Model HD700 -Differential Pressure Manometer
Low range (0 to 2psi), High Resolution (0.001psi) Gauge/Differential Pressure meter. Offering 11 selectable units of measure, the HD700 Differential Pressure Manometer can serve as a low range/high resolution Gauge or provide Differential Pressure up to 0 to 55.40 in. H2O (inches of water). Max/Min recording and Relative time stamp are useful features, as are HD700`s Data Hold and Auto Power Off functions. The 2psi HD700 also features Zero function for offset correction or measurement and a built-in USB interface. Comes complete with 9V battery, software with USB cable, AC Adaptor, connection hose, built-in stand, and hard carrying case.
Most popular related searches
differential pressure manometer
differential pressure flow meter
manometer
differential pressure gauge
pressure gauge
- ±2psi range, 11 Selectable units of measure
- Max/Min/Avg recording and Relative time stamp
- Data Hold, Auto power off and Zero function
- Large LCD display with backlighting
- Heavy duty, double-molded housing
- Built-in USB port (Windows® compatible PC software and cable included)
- Specifications : Range (Max Resolution)
- psi : 2psi (0.001psi)
- inH₂O : 55.40inH₂O (0.01inH₂O)
- mbar : 137.8mbar (0.1mbar)
- kPa : 13.78kPa (0.01kPa)
- inHg : 4.072inHg (0.001inHg)
- mmHg : 103.4mmHg (0.1mmHg)
- ozin² : 32ozin² (0.01ozin²)
- ftH₂O : 4.616ftH₂O (0.001ftH₂O)
- cmH₂O : 140cmH₂O (0.1cmH₂O)
- kgcm² : 0.140kgcm² (0.001kgcm²)
- bar : 0.137bar (0.001bar)
- Basic Accuracy : ±0.3%FS
- Dimensions/Weight : Meter: 8.2x2.9x1.9" (210x75x50mm)/ 9.8oz (280g)
