DADAFTA - Model 298-00 - Diffused Air / ...

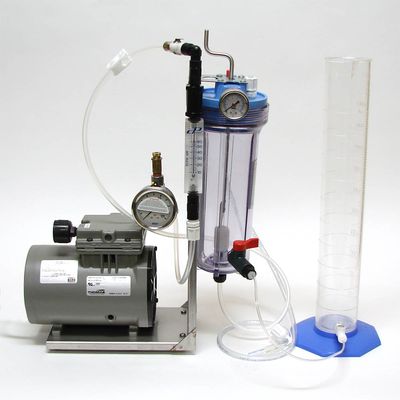

DADAFTA - Model 298-00 -Diffused Air / Dissolved Air Floatation Test Apparatus

FromOFI Testing Equipment, Inc.

SHARE

Dissolved Air Flotation and Diffused Air Flotation (both referred to as DAF), are water treatment processes that clarify wastewater by removing suspended matter such as oils and solids. Fine gas bubbles (usually from compressed air) are introduced into the liquid. The bubbles attach to the particulate matter and float them to the surface to form a froth. Chemical flotation aids are often used to enhance the DAF process. The Diffused Air / Dissolved Air Flotation Test Apparatus (DADAFTA) simulates the DAF process on a small scale. The DADAFTA can be used to measure the floatability of a particular sludge when designing treatment plants and to evaluate chemical flotation aids.

Most popular related searches

dissolved air flotation

oil in wastewater

organic wastewater treatment

water treatment system

wastewater treatment plant

oil free air compressor

Features

Clear, unibody pressure cell withstands pressures up to 125 PSI (8.6 bar)
Oil-less piston air compressor for high efficiency and constant performance
Permeable ceramic disk used for the diffuser can be removed, cleaned, and reused
Chemical flotation aid inlet with septum
Stainless steel paddle for additional mixing capabilities
Easy-to-read flow meter and pressure gauge
Quick disconnect fittings

Specifications

Maximum Pressure: 100 psi (689.5 kPa)
Electrical: 115 Volt, 60 Hz or 230 Volt, 50 Hz

Applications

Separation of flocculated matter in the clarification of surface water
Separation of flocculated or non-flocculated oil in wastewater from refineries, airports, and steelworks
Separation of metallic hydroxides or pigments
Thickening of the activated sludge (or mixed sludge and primary sludge) from organic wastewater treatment plants

Part Numbers

#298-00: 115 Volt
#298-00-1: 230 Volt
