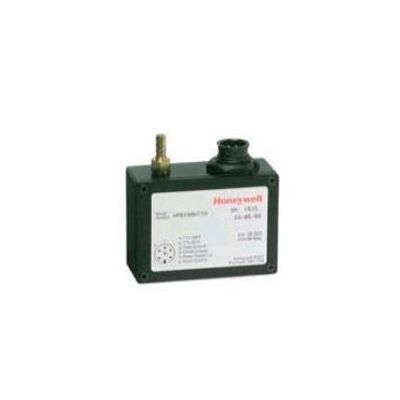

Model MT-BPD0001 & MT-BPD0002 -Digital Barometer
Mesotech`s Professional Digital Barometer is a highly accurate pressure transducer with a digital output signal. This instrument measures atmospheric pressure to within ±0.3% FS. It is ideal for automatic stations based on the MicroDCP or other data acquisition processor. The Precision Barometer offers outstanding value in real-world conditions that demand accurate and stable barometric measurements. The barometer uses proven silicon sensor technology with microprocessor-based signal compensation, eliminating the need to insulate or temperature-regulate the barometer. It has a pressure range of 0 to 17.6 psiaor500tol200hPa. The barometer has a digital output of RS-232C, RS-485, or TTL level ASCII data suitable for direct input into any computer.
The sensor can operate from unregulated supply voltage in the range of 6 to 26 volts without affecting performance. Current consumption is 17 to 30 mA in measurement mode. For operation in remote locations under batteiy power, the sensor has instant warm-up and turn-on to full rated accuracy. This allows sampled operation at low average power consumption.
- ±0.03% or ±0.06% full scale accuracy
- TTL power active and standby control
- Full range digital temperature compensation
- Full range linearization
- RS-232 and RS-485 outputs
- Extreme shock and vibration resistance
- Long-term stability
- U naffected by orientation, density, acceleration
