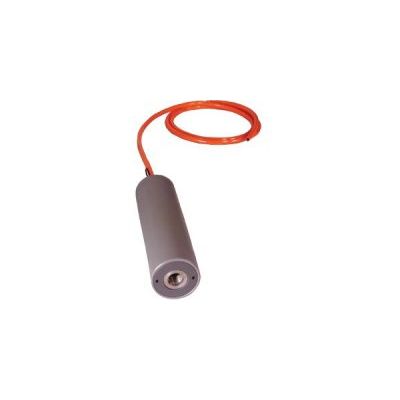

Vulcan - Model VSL -Digital Hydraulic Sensor

The digital VSL Hydraulic Pressure Sensor can be installed vehicles to measure the pressure of the hydraulic hoist cylinders. Vulcan offers a complete line of electronics and load cells that work in conjunction with the hydraulic sensor to scale dump trucks, roll-offs and other configurations.

Most popular related searches

on-board weighing

pressure sensor

mining truck

load cell

weighing system

digital pressure sensor

Sensor and electronics are integrated into one compact package
East to install
Highly reliable, no moving parts
Rugged, stainless steel pressure sensor for harsh environments
Eliminate overweight fines
Monitor loading or unloading of weights at remote locations
Save time loading, weighing and adjusting the load
Reduce time and mileage by minimizing trips to commercial scale
Reduce maintenance costs by not overloading the vehicle
Prevent hauling freight in excess of contracted weight

Capacity: Normal working pressure: 3000 psi
Material: Heat treated stainless steel sensor enclosed in a rugged, corrosion resistant housing
Size: 2” Dia x 6.56” L
Safe Overload: 5800 psi
Accuracy: System accuracy typically within 1% of GVW depending on leveling valve type, suspension and environmental factors
Port Size: 9/16-18 SAE straight thread o-ring fitting (SAE: -6)
Output: Power and communications on 2-wire VSL digital link

Vulcan - Model VSL -Digital Hydraulic Sensor

Features:

Specifications
