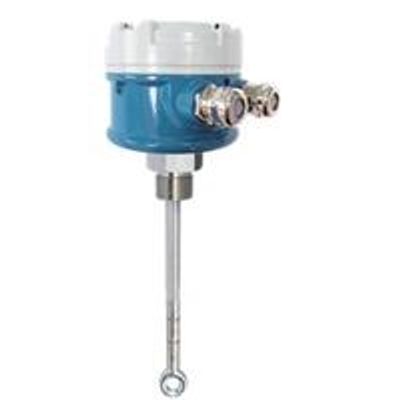

SGM - Model TM -Digital Multipoint Temperature Probe
Multipoint thermometric probe with SS304 sheat, with digital sensors, for the temperature control inside silos or sheds (cereals and derivatives). Our probes have a high response speed due to the optimal combination of a low specifi cheat, combined with a high thermal conductivity and are therefore able to provide an early warning in case of fire in the empty part of the deposit.
Most popular related searches
temperature probe
digital temperature sensor
digital temperature controller
temperature sensor
ATEX certification
level probe
level controller
- Modbus RTU communication.
- Up to 50 digital temperature sensors.
- Reduced tractive effort during unloading, suitable for installation on tin roofs.
- Certification:
- ATEX II 1D Ex Ta IIIC T92°C Da
- ATEX II 2D Ex Tb IIIC T67°C Db
- Housing materials aluminium epoxy varnished
- Process Connection 1/2” G SS304; DN40 flanged; hook for under roof fixing
- IP rating IP67
- Detection points n° 1 ÷ xx (max n°50)
- Working temperature -30°C ÷ +125°C
- Accuracy ±0,5°C (range of -10°C ÷ +85°C)
- Certification ATEX II 1D Ex ta IIC T92° Da / II 2D Ex tb IIIC T65°C Db, ATEX Zone 22
