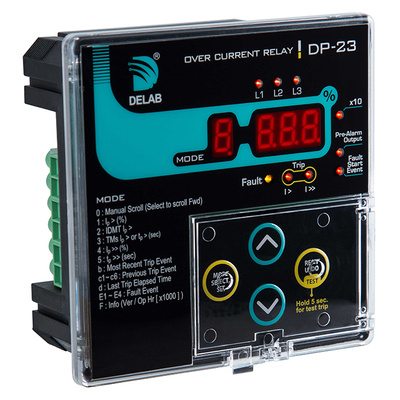

Delab Scientific - Model DP-23 (DTL) -Digital Over Current Relay
True RMS Measurement with SPARC and DCOI Algorithm. Auto / Manual Scroll for Real Time Display of Phase Current in (%). LTI + DTL
Fault / lo-set & hi-set Trip LED Indication. Fault Start Event Recording & LED Indication + Output. Pre-Alarm LED Indication + Output. Trip Event Memory (non-volatile 7 previous records for all phases).
Most popular related searches
- Fault Start Event Memory (non-volatile 4 previous records with phase info)
- Selectable Frequency (50/60 Hz)
- Programmable Relay Output Contact for K2
- Last Trip Elapsed Time (up to 99days)
- Software Lock to Prevent Unauthorized Setting
- Complies with: IEC-60255-26/27; BS EN 50121-5 Standards
- ANSI Code: 50P, 51P
- External Plug-in Module for: A-01s / A-01sp (RS-485 MODBUS RTU) isolated type
