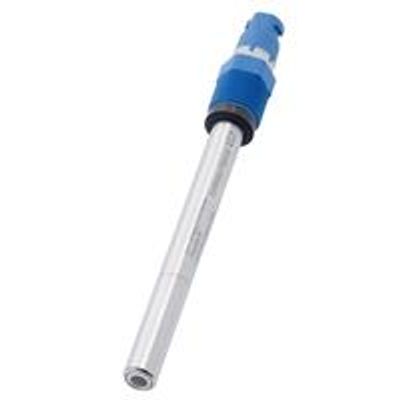

Oxymax - Model COS22D -Digital Oxygen Sensor
Memosens amperometric oxygen sensor for standard, hygienic and sterile applications. The Oxymax COS22D safeguards your products, process and plant equipment from oxygen influences. It measures reliably over a wide range helping you to better monitor and control your applications. The sensor is low-maintenance and ensures long-term stability - even with frequent sterilization and autoclaving. Thanks to Memosens digital technology, COS22D combines maximum process and data integrity with simple operation. It enables lab calibration and facilitates predictive maintenance.
- Reliable, long-term stability and linear measurement
- Low-maintenance design
- Suitable for CIP/SIP and autoclaving
- Unique hygienic design (EHEDG)
- USP class VI
- Approved for hazardous area use
Oxymax COS22D measures oxygen in the core processes of many industries:
- Pharma and biotechnology
- Process control in enzyme production
- Control of culture growth
- Food & Beverages
- Chemicals
- Water treatment
- Boiler feedwater
- WFI (water for injection)
- Inertizations
- Residual oxygen measurement in processes
With its international explosion-protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.
- Oxygen Measuring Principle : Sensor Oxygen
- Application : Food, Pharma, Fermentation, Process, Power :
- Installation : Standard process connection Pg 13.5
- Installation in standard pH assemblies possible
- Characteristic :
- Digital sensor for measuring oxygen. Sensor with long-term stability for frequent sterilization and autoclaving.
- Sensor for standard applications
- CO2 compatible trace sensor for the beverage industry
- Trace sensor in the power plant sector
- Measurement range :
- 0,001 ... 20 mg/l
- 0 ... 200 %SAT
- 0 ... 400 hPa
- Measuring principle : Amperometric measurement of oxygen.
- Design : Membrane-covered 2-electrode oxygen sensor with teflon-membrane, sensor done by stainless steel
- Material : Sensorbody : stainless steelMembrane : PTFE coated stainless steel net with a silicone coating.
- Dimension : Diameter : 12mm (0.46inch)shaft length : 120,225,360 and 425mm (4.68,8.77,14.04 and 16,57inch)
- Process temperature : -5 - 135°C , 23 - 275°F
- Process pressure : ambient (1bar) - 12bar ambient - 174psi
- Temperature sensor : Integrated NTC temperature sensor
- Connection : Memosens-connection head
- Additional Certifications :
- material certification 3.1
- Surface roughness Ra<0,38
