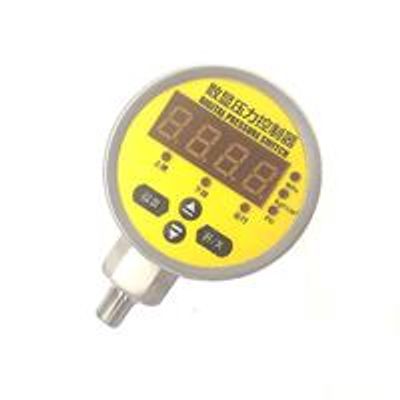

XuYan - Model XY-PC600E -Digital Pressure Controller
4-Digits LED, Φ60mm Stainless Steel Shell; One Relay, Output Signal NONC; Set Alarm Point In Whole M. Intelligent Pressure display and control, alternative for Mechanical Pressure Switch and Gauge together, wield in Industry applications such as Automatic System, Mobile Working Machines, Medical Equipment, Pump, Compressor, Energy and Water Treatment, Agricultural Equipment, Test System, Hydraulic System and Pneumatic System.
- Stainless steel 304 shell, dial diameter Ф60mm
- 4-Digits LED Display,
- Multi-unit convert MPa/Kgf/cm2/PSI
- Accuracy level:0.5%FS
- Power supply 12 or 24VDC; Optional 220VAC
- Relay output signal NONC
- High precision, quick response time, stable and easy setting up
XY-PC600E is an Intelligent Digital Pressure Controller, with 60mm diameter stainless steel shell, integrating pressure measurement, display and control function. It has a variety of excellent functions, such as one-button reset, Multi-pressure Unit Converting and it`s easy to reset setting, adjusting and installation.
This series of digital pressure controller has one relay, which can be set up normally open and normally closed; these alarm points to control high and low pressure of air or liquid, in addition, it is with one key reset, at the same time, calibration, shifting display unit, setting return difference and other option functions.
The intelligent pressure controller is equipped with high-precision instrument amplifier to amplify pressure signal, built-in temperature compensation sensor, is the high precision equipment for detecting and monitoring pressure，strong anti-electromagnetic interference (EMI), surge protection, reverse protection and so on.
XY-PC600E Intelligent Digital Pressure Controller can be widely used in Automatic System, Mobile Working Machines, Medical Equipment, Pump, Compressor, Energy and Water Treatment, Agricultural Equipment, Test System, Hydraulic System and Pneumatic System.
Model: XY-PG600E
- Gauge Pressure Range: 0…0.2…0.6…1.0…1.6…2.5…5…10…25MPa
- 0~1…10…16…25…50…100…250…400…600…160Bar
- Mirco Pressure Range: 0~5…10…25…50…100KPa
- Overload Capacity: ≤100Bar 200%; >100Bar 150%
- Measurement Medium: Gas or oil or other Liquid with Compatibility of SS 304 or 316
- Accuracy Level: 0.5%FS;
- Long-Term Stability/Year: Typical: ±0.5% FS;
- Sampling frequency: 5times/second
- Alarm Point: Any pressre @whole measurement range
- Output: Relay; NONC
- Relay Capacity: 220VAC 5A; 24VDC 5A
- Electric protection: Short-circuit protection; Reverse connect protection; EMC
- Display: 4 digits LED
- Operating temperature: -20~80oC
- Compensation: -10~60oC
- Power Supply: 12/24VDC or 220VAC and 380VAC are optional
