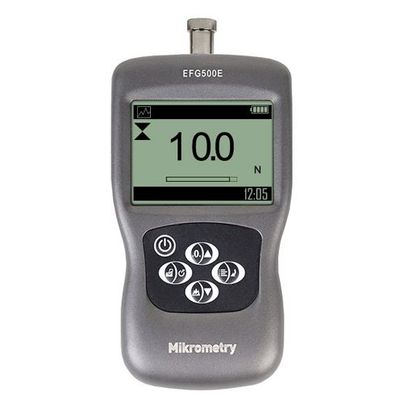

Mikrometry - Model EFGE -Digital Push Pull Force Gauge
With compact size, and high accuracy, the digital push pull test meter is easy to operate and handy to carry out. The digital pull force gauge, also called the digital push-pull force meter, can be widely applied in electron, high & low voltage electrical appliances, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and other industries for testing of pull or push load test, insertion force or pull and destructive experience.
EFGE digital push-pull force meters are high-precision push-pull force test instruments. The electronic push pull force gauge adopts an aluminum alloy shell, and the whole machine is light in weight. These spring testing machines are especially suitable for hand-held measurement. It has built-in high-precision sensors and mechanical overload.
The internal sampling frequency of this digital force gauge meter is 1000HZ, the software has tracking, peak, and preset modes, which can be applied to the brake test of the product. Compared with the compression force gauge, the insertion force test and other force tests, up to 500 measurement data storage.
- Durable metal case
- Reverse display setting
- Mechanical overload protection
- Calibration certificate Included
- Charger with US/EUR/UK Plugs selectable
- With the USB or RS232 communication interface, this digital push-pull gauge can easily communicate with PLC
- Accuracy: ± 0.3% FS
- Sampling Rate: 1KHz
- Accuracy : ± 0.3% F.S.
- Selectable Units : N?gf? kgf? of and bf
- Display : 160*128 dot matrix LCD(2.8 inches) with LED Backlight
- Overload Capacity : 150% of F.S. (LCD blinks beyond 110%)
- Overload Protection : Overload Protection Mechanism to prevent to be damaged
- Measurement Mode : Track ?Peak?Preset Peak
- Data Sampling Rate : 1KHz
- Display Update Rate : 10 times/second
- Memory : 500 data
- SetPoint : Programmable high and low limits
- Battery Indicator : The display flashes the battery icon when the battery is low
- Power : 3.6VDC 400mAH Ni-Mh rechargeable batteries
- Battery Life : Approx. 7 hours per charge
- Charger / Adaptor : Universal USB/BM charger, Input:110~240VAC
- Temperature Effects : <0.03% FS per °C
- Communication : USB or RS-232
- Software : Free software for USB communication
- Outputs : RS-232, "Within" set point output, "Under or over" set point output
- Operating environment :
- Temperature: -10 to 40°C
- Relative Humidity: 20 to 80%
- Storage environment
- Temperature: -20 to +50°C
- Relative Humidity: 5 to 90%
- Dimensions : 150*72*33mm
- Weight: 0.45 kg (1 lb)
- Accessories : AC adapter/charger,6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
- Options : Mini-printer, Measuring Adapter, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit.
