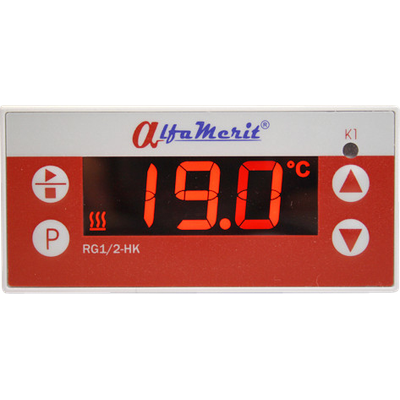

AlfaMerit - Model RG1/2-H/K -Digital Temperature Controller - Electronic Microstat
The RG1/2-H/K is a versatile digital temperature controller designed for precise heating and cooling applications. This advanced microstat incorporates cutting-edge electronic components to enable effective temperature regulation across diverse use cases. Compatible with various temperature sensors utilizing Pt100 or Pt1000 elements, it ensures optimal integration for accurate environmental monitoring. The device features a backlit three-digit display that clearly presents temperature readings, while the integrated LED indicator provides real-time relay status updates. AlfaMerit’s RG1/2-H/K exemplifies the company's focus on delivering high-quality measurement and sensor technology directly from the experts. This precision instrument is a testament to AlfaMerit's commitment to combining reliability with advanced functionality, fulfilling the demands of technical professionals in need of consistent and reliable temperature management solutions.
Our RG1/2-H/K temperature controller is a digital electronic microstat for simple temperature control (heating or cooling). It is used in a wide variety of applications. The controller can be used with almost all of our temperature sensors equipped with a Pt100 or Pt1000 sensor element. The actual temperature value is shown on the three-digit, backlit display, and an LED indicates the switching status of the relay.
With the sophisticated RG1/2-HK temperature controller, AlfaMerit demonstrates its consistent commitment to the principle of "measurement technology and sensors directly from the professionals." This precision instrument is a digital, electronic microstat for simple temperature control (heating or cooling).
With this type of temperature control, AlfaMerit implements state-of-the-art programming, operating, and control technology. In addition to high precision, the design of the measuring instrument focused on features such as simple and safe operation, fast commissioning, optimized process parameters, and a robust housing for use in harsh industrial environments. The temperature controller is easily operated via the front-panel controls.
With the temperature control, you can adjust the minimum on and off times depending on the heating or cooling device used, set the cyclic cooling duration, or start periodic heating operation. An electronic microstat that meets your requirements. We've summarized the advantages for you:
- User-friendly configuration and parameterization
- Clear 7-segment display
- Four-digit, red, backlit LED display
- Freely programmable setpoint setting
- Compatible with almost all sensors of the Pt100 and Pt1000 series
- Digitally adjustable ON/OFF temperature control
- Easy operation via front-panel buttons
- Timer function
- Code-protected parameter level
- Error detection in the event of a sensor defect
- Freely adjustable service interval
- Robust polycarbonate housing
- Power supply: 230 VAC
- Power consumption: <3 VA
- Input (sensor): PT100, PT1000 (DIN EN 60751)
- Scale: -200 … +600°C
- Resolution: 0.1°C
- Accuracy: 1% / <=100ppm/K
- Exit
- Switching output: Relay, changeover contact, 250VAC 10A
- control
- Setpoint selection: 1 Setpoint setting
- Control behavior: On – Off switching behavior
- Hysteresis: Adjustable between 0.2 … 1.0 … 99.9
- Housing
- Housing material: Polycarbonat
- Installation position: any
- Housing type: Switch panel installation
- Dimensions (installation): 56 x 68.5 x 28 mm
- Dimensions (aperture): 76 x 36 mm
- Advertisement
- Place: 4-digit
- Character height: 12.5 mm
- Ad type: 7-segment LED display, red
- Miscellaneous
- Connection type: Screw terminal, max. 2.5 mm²
- Data backup: E²PROM
- EMC: EN 61326
- Electrical safety: DIN EN 61 010, Part 1, Overvoltage Category III, Pollution Degree 2
- CE confirmation: Yes
