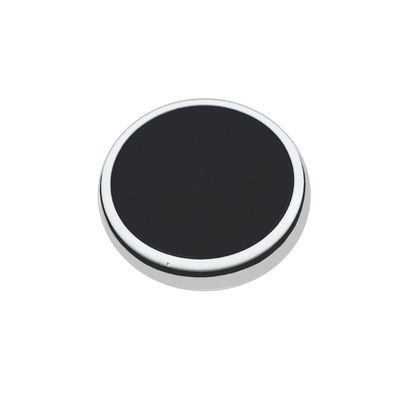

Model 9 inch EPDM SL -Disc Diffusers
FromWTE srl
We cut the price not the quality. Less plastic has been used to produce this diffuser and we have modified the retainer ring. Membrane and all components are moulded and assembled in Italy. The threaded connection is a NPT 3/4″ M.
Most popular related searches
Cod.:04059
Outer diameter:267 mm
Membrane material:EPDM
Threaded connection:3/4" NPT M
Active surface:0,0381 m²
Perforation:1,0-1,5 mm
Airflow range:2,0-4,0 Nm³/h
Dynamic wet pressure:38 hPa
Dynamic wet pressure is calculated at nominal airflow and 4 m submergence
