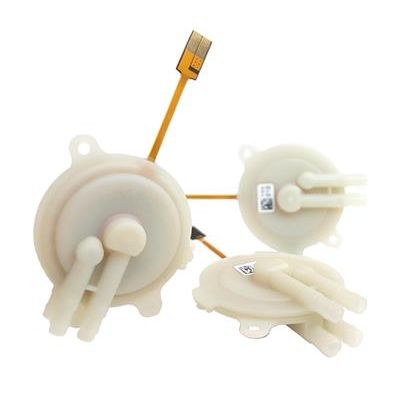

XP Series - Disc Pump
The XP Series offers our highest performance, efficiency and widest operating temperature range of -25 to 55°C to suit the most demanding applications. Our highest-performance, efficiency and widest temperature range. Tightening legislation and the growing global focus on air quality, worker safety and environmental emissions are driving the requirements for a new generation of measurement and monitoring systems. With its combination of high performance, pulsation-free flow, controllability and size, the multi award-winning Disc Pump from ION Science is well placed to enable the development of these systems, from gas samplers and detectors, to laboratory analysers and particle counters.
Disc Pump is a multi award-winning micropump platform, which is enabling innovation across sectors from medical and life sciences, to environmental and defence through wearability, portability, and simplicity.
We offer two product lines: the entry-level BL Series, which strikes a balance between performance and cost; the XP Series with our highest performance and widest temperature range to suit the most demanding applications.
All of our pump designs have two pumping chambers. These are configured at the point of manufacture to be in series for higher pressure applications, or parallel for higher flow.
The XP Series offers our highest performance, efficiency and widest operating temperature range of -25 to 55°C, with this unique set of features Disc Pump enables advances across a broad spectrum of Gas Sampling, Detection, Monitoring and Analysis applications.
- Exceptional pressure and flow
- Silent, vibration-free operation
- Ultrafast millisecond response
- Lightweight, compact form
- High-precision controllability
- True pulsation-free flow
- Infinite turn-down ratio
- Maintenance free
- Resistant to magnetic fields

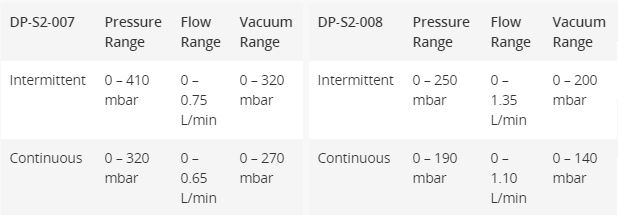

Operational
- Temperature range: -25 to +55oC
- Humidity range: 0 to 95% RH
- Pumping medium: Air
- Noise level: < 10dB
- Control precision: < 0.1%
- Turn-down ratio: Infinite
Mechanical
- Size: 30 dia. x 10 mm
- Weight: 5 g
