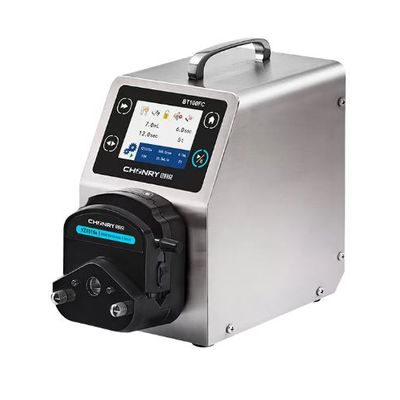

Chonry - Model BT100FC -Dispensing Peristaltic Pump
The flow rate of BT100FC dosing peristaltic pump is from 0.0015 to 480mL/min. It adopts a 3.5-inch screen displaying the flow rate and running state with high accuracy. It is equipped with power-off memory that returns to the previous state when power on. And flow rate calibration function. BT100FC has the dispensing and transferring of two working models. It is widely used for medicine filling, the chemical industry and transferring food fluid products.
Most popular related searches
peristaltic pump
flow calibration
head pump
peristaltic dosing pump
dispensing pump
dosing pump
chemical transfer
peristaltic dispenser
flow control
- LCD touch:3.5-inch color LCD, Chinese, and EnglishDisplay, touch screen control.
- Flow calibration: With the flow calibration function, it is suitable for transferring liquids with higher precision
- Data storage: 9 sets of data can be stored for users
- Multiple working modes:dispensing and transferring of two working models
- Acceptable pump heads: YZ, DG, TX series pump heads can be installed, and Pump heads can be cascaded.
- Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control
- Drive model: BT100FC
- Max Speed: 100rpm(reversible)
- Speed resolution: 0.1rpm
- Max flow: 480mL/min
- Display method: LCD(EN and CN)
- Speed mode: Touch screen + keypad
- Timing range: 0.1s-9999min
- Quantitative range: 0.001mL-9999L
- Power: <22W
- Drive size: 212*142*238mm
- Power supply: AC220±10% (standard) or AC110V±10% (optional)
- External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
