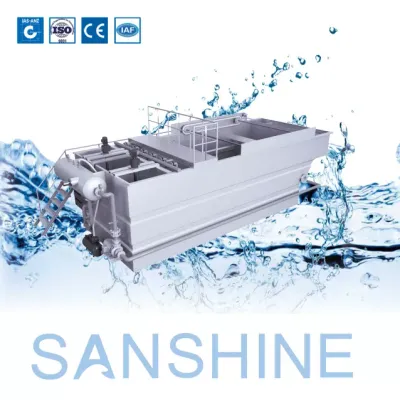

Dissolved Air Flotation Machine
Dissolved air flotation is a process that removes fats, oils, and other small suspended solids, reducing COD and BOD. Use bubble flotation. Air is dissolved in water, and the saturated water microbubbles generated by the dissolved air adhere to the solid surface. The low density of light solids compared to water elevates them to the surface and distributes them throughout the entire groove width, ensuring the best image liquid separation effect. The mechanical skimmer is used to remove the scum layer, and the purified wastewater is dis - charged into the next process. The dissolved air flotation machine adopts new and efficient dissolved air equipment - a micro bubble generator, which replaces traditional air entrainment equipment to dissolve air into water. Several inclined tube groups are installed in the air flotation area, including a box body, a scraper, and a spiral discharge machine, to form a complete air flotation water purification device .
The dissolved air flotation machine is composed of components such as the air flotation tank body, dis - solved air system, dissolved air return pipeline, dissolved air water release device, foam scraping device, and electric control cabinet. Air flotation mainly plays a role in solid -- liquid separation. After adding flocculants PAC or PAM to the raw water, the effective flocculation reaction time, dosage, and flocculation effect must be deter - mined experimentally, and the raw water enters the combined air flotation contact zone. In the contact zone, the microbubbles in the dissolved water and the flocs in the raw water adhere to each other and enter the separation zone together. Under the buoyancy of the bubbles, the flocs and bubbles rise together to the page, forming scum. The scum is scraped from the scraping device to the sludge area. The clean water in the lower layer flows automatically to the clean water tank through the water collection pipe. Some of the clean water flows back for use in the dissolved gas system, while the other part is discharged. Returned clean water passes through the jet suction device, and under a certain working pressure, the air is maximally dissolved into the water, becoming dissolved water. The dissolved water is released in the air flotation contact area through rapid pressure reduction by the release device, forming micro bubbles with a diameter of around 30um--50um. This microbubble can bond with the flocs in the raw water .
- Easy operation and maintenance
Various sensing devices can be used to achieve 24-- hour fully automatic unmanned operation . At the same time , there are few daily maintenance items and maintenance tasks are simple .
- Various models and a wide range of applications Municipal wastewater , papermaking wastewater , chemical wastewater , food and beverage processing wastewater , papermaking wastewater , industrial production wastewater , pharmaceutical wastewater , petroleum processing , mining wastewater , etc .
- The gas dissolving device has multiple patented technologies
The malfunction of the dissolved gas release device can be disassembled and repaired with - out stopping the machine , without delaying the progress of the operation .
- Compact design , space saving
Convenient installation , small footprint , strong compatibility with ancillary equipment , and easy replacement of existing equipment .
- Power saving , high efficiency
Reasonable design , low power consumption , and with the same processing capacity , the gas dissolution efficiency can reach over 90%.
- Considerate and timely after - sales service SANSHINE strives to reduce users ' worries with high - quality products and the best after - sales ser - vice . At the same time , it provides a one - year free warranty period after equipment operation and debugging are qualified .
- Anti corrosion , maintenance free
The scraper chain is made of nylon + POM material , which is sturdy and durable .
- Food and agricultural product processing
- Aquatic Products and Meat Processing - Pharmaceuticals
- Fibre
- Energy
- Electroplating wastewater - Chemical industry
- Juice brewing
- Wastewater from aquaculture and slaughter - Landscape water
- River black and odorous wastewater - Civil engineering
- Water Reuse
- Papermaking and pulping
- Garbage waste
- Others
