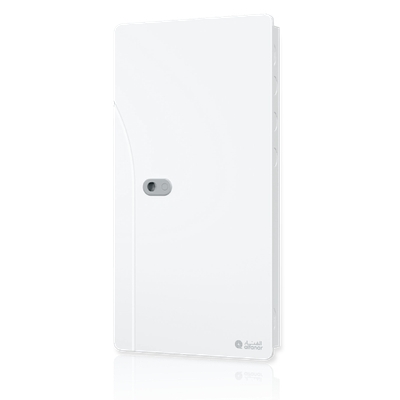

Model New Raysan -Distribution Boards

Specifications: Type tested as per SASO IEC 61439-3. Achieve the discrimination between the main breaker and the branch breakers. Number of phases: 1, 2, or 3 phase. Number of Ways: For 1 Phase panel: 4 Ways to 12 Ways, For 2 Phase panel: 4 Ways to 8 Ways, For 3 Phase panel: 6 Ways to 54 Ways. Main Breaker: MCCB type: 30A to 400A. Branch Breaker: MCB Plug-in type: 6A to 63A. 1, 2, or 3 pole, RCBO Plug-in type: 6A to 40A, 30 or 100mA sensitivity. 1 pole. Area of application: Area of application: Indoor Applications (IP41) or Outdoor Applications (IP55). Mounting Types: Flush or Surface. Colors: Signal White (RAL9003), Pure White (RAL9010), or Light Gray (RAL7035).
