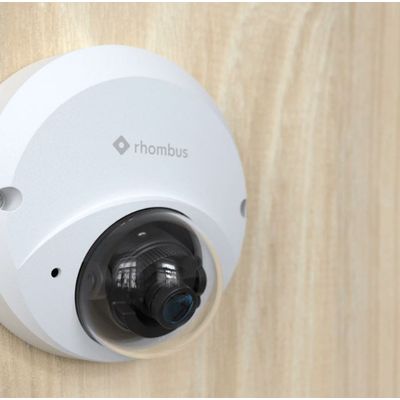

Rhombus - Model R170 -Dome Camera
Compact, discreet, and unobtrusive micro-dome with AI analytics and Rhombus sensor compatibility.
Resolution: 5MP sensor, 2592 x 1944 resolution
Aperture: F/2.0
Pan / Tilt / Zoom: Up to 2X digital PTZ
Field of View: 132° Diagonal FoV; 108° Horizontal FoV; 76° Vertical FoV
Focal Length: 2.8mm
Dimensions: 105mm (4.13in) x 52mm (2.04in)
Weight: 0.19kg (0.43lbs)
Onboard Storage Included: 128GB or 20 days; 256GB or 40 days; 512GB or 90 days; 1TB or 180 days
Ethernet: 10 / 100Mbps, MDI / MDI-X Auto Sensing
Power-Over-Ethernet: Standard 802.3af for one-cable installation
Power Consumption: Max 4.8 watts
Operating Temperature: -30° to 55° C; -22° to 131° F
Operating Humidity: 10% to 90% RH
In the Box: Mounting screws
Baseline Steady State: 10 - 30 Kbps per camera
HD WAN Live Streaming: 530 - 720 Kbps per camera
Rhombus Sensor Network Compatible
CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant
10-Year Warranty Included
