Model MIRA-35 -Doppler Scanning Cloud Radar

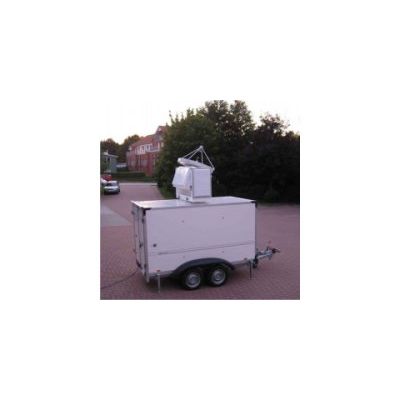

The pulsed Ka-band cloud radar MIRA-35 (formely named MIRA-36) is unique in performance and durability and delivers a calibrated Doppler spectrum of cloud droplets in up to 1024 height steps for a vertical range between 0.2 km … 15 km at a time resolution of 10 s. The wide dynamic range and the very high system sensitivity allow a tomography of cloud structures even in thin ice layer. Several antenna sizes can be installed stationary or in a trailer as mobile platforms.
Most popular related searches
- MIRA-35 mounted on a servo driven positioner
- Continuous azimuth rotations, 0 … 360°
- 1 m or 1.2 m Cassegrain antenna with optional heating
- Up to 2 x 1024 measuring heights (real + imag)
- Horizon to horizon RHI scans ±90 °
- Ongoing radar measurements while scanning
- Freely programmable scan patterns (VDA, RHI, volume)
- Entry of predefined scan patterns via interface
- Synchronized movement in both axes
- All radar components integrated in the scanning unit
- No RF rotary joints
- Slip rings and bearings kept in conditioned environment
