GENODOS - Model DM -Dosing Systems

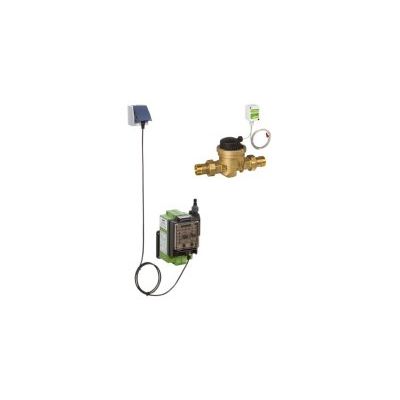

The dosing system GENODOS DM controls the flow-dependent dosing of EXADOS minerals in commercial and industrial buildings. Consistent drinking water quality protects water pipes and system parts against scale deposits and corrosion. The dosing system consists of the dosing pump GENODOS GP and the associated contact water meter. As in the case of GENODOS DME, the dosing systems are designed for a dosing volume of 100 ml of EXADOS solution per m³ of water. However, in the DM systems, the dosing line, pump connection set, dosing group and suction lance, or the complete dosing tank can be selected individually and supplemented by modules depending on the specific operating conditions.
- Dosing volume 100 ml/m³
- Nominal output up to 100 m³/h
- Nominal pressure PN 10 bar (as of DN 80: PN 6 bar)
- Max. suction lift 1.5 m WC
- Contact water meter
- Max. temperature 30°C
- DVGW-certified
- Dosing system consisting of: self-priming, continuously adjustable diaphragm dosing pump, automatically deaerating against pressure, synchronous motor 230 V / 50/60 Hz with connection option for empty signal, external control and voltage-free fault signal output
- Contact water meter with pulse cable to the GENODOS® pump
- Hose connection set 2/4 or 4/6 for DM 80/100
For further information on the scope of supply, as well as technical details, see the product data sheet, which is available to download.
