Instal-Filter - Dosing Valves

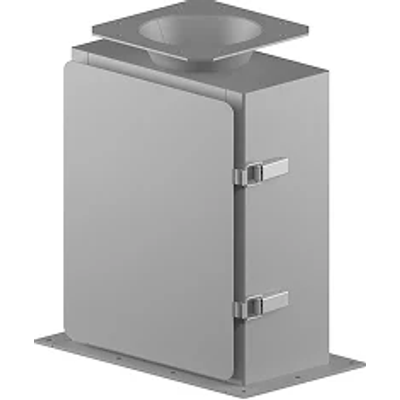

A gap valve is a simple and reliable shutting-off device. It is designed to remove dusts from containers operating at sub-pressure without a decompression risk. It is the most frequently applied by us e.g. beneath mechanical dust extracting units, cyclo-filters and bag filters. Basic element of a gap valve IF150 is a replaceable rubber element. This is very important since during operation, as an effect of sub-pressure, internal parts of lower part of the rubber element of the valve adhere tightly to each other. In this way, air can’t penetrate the interior and dust can’t leave the interior. After relevant quantity of dusts gathers over the rubber element (to equalize the sub-pressure), it is opened and dusts are ejected. It lasts till the sub-pressure in the valve closes it.
