TVN - Model V106 - Double Eccentric ...

TVN - Model V106 -Double Eccentric Butterfly Valve

SHARE

The TVN V106 Double Eccentric Resilient Seated Butterfly Valve is a prominent choice in water network systems. By utilizing a disc design where the center is shifted along two axes, the valve significantly reduces operational torque, thereby minimizing friction in the disc sealing area and extending its overall service life. This innovative engineering approach makes it a suitable solution for various applications requiring efficient and reliable valve operations. With extended durability and enhanced performance, this valve meets the critical needs of modern water management systems.

Most popular related searches

double eccentric butterfly valve

eccentric butterfly valve

butterfly valve

seated butterfly valve

water network system

resilient seated valve

water management system

wedge welding machine

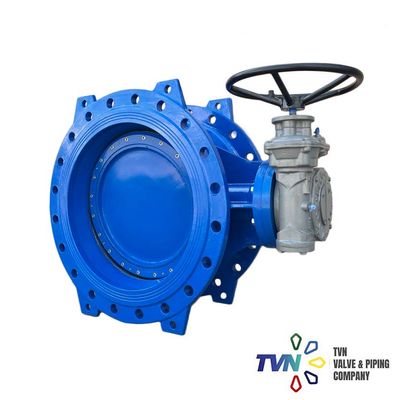

TVN V106 Double Eccentric Resilient Seated Butterfly Valve is the mainstream product type preferred in water networks. Through its disc design where the center is shifted in two axis, this leads to a big improvement on decreasing operation torque values, lowering the friction on disc sealing area and extended service life.

GGG40/50 Ductile Iron Body & Disc allows high impact and streching resistance
Double Eccentric / Double Offset Disc Design
Resilient Seated Type
Disc sealing ring EPDM as default. NBR or VITON options are available
Block moulded solid/one-piece T-shaped disc sealing ring extends drop-tight sealing life time
Easy to replace disc sealing ring without dismantling the valve from the pipeline and without dismantling the disc from the valve itself just by taking out the retaining ring through its bolts. Iit is easy to replace the disc sealing ring without any additional equipments
SS308/316 grade stainless steel welding seat on the body is manufactured through automatic welding machines and microfinished precise milling operation. When disc is fully closed, disc sealing ring applies equal pressure on every point on the welding seat.
Drop-tight closure
Double O-ring feature on both shafts ensures high sealing
Shafts are equipped with bronze bushings having high corrosion resistance
Ensures minimized pressure loss and increased energy efficiency with double shaft design
With the o-rings on the bearing bushings, disc pin holes are protected against corrosion. Dry shaft up to request.
Easy to operate with self locking gearbox equipped with mechanical indicator
Low torque requirements during operation
Easy to install on the line, light weight and occupies less space
Full coating on the body and disc internally & externally with an average of 250 microns. Higher coating thicknesses are available when required.
WRAS approved coating available upon request which meets hygienic requirements for potable water applications
Maintenance free design for the valve and gearbox
Default operation is gearbox with ISO top flange ready to connect electrical actuator. Pneumatic actuators can be installed directly on the top flange of the valve itself.
V106 Double Eccentric Butterfly valves are deisgned bi-directional according to EN1074-2. For proper installation, direction arrow on the body should be considered.
Operation with extended spindle version is also available
Balanced positioned lifting holes on the body ease transportation and installation.
Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1.
