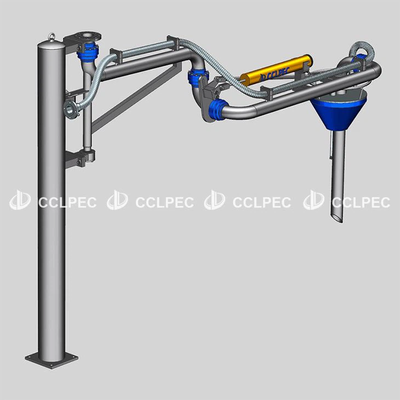

CCLPEC - Double Pipe Top Loading Arm
The loading arm is mainly composed of pipelines, structural components, electrical part. Pipes have inboard arm, outboard arm, drop pipe.
Most popular related searches
top loading arm
pneumatic cylinder
sealing cone
position sensor
pipeline sealing
level switch
piping design
pressure seal
pneumatic valve
load sensor
- Mainly composed of liquid pipeline, gas return pipeline, sealing cone, etc.
- Outboard arm with locking device to ensure the sealing of tank hatch.
- Optional equipped with: a. Level switch, b. pneumatic cylinder, c. loading valve d. position sensor e. telescopic drop pipe and so on.
- Medium: oil, volatile chemicals, etc.
- Diameter: Liquid Pipe: DN80, DN100, DN150, Gas Pipe: DN50
- Design temperature: -40~80?
- Design pressure: 0.5~2.0MPa
- Product seal: PTFE-C, PTFE virgin, FPM, NBR, UHMW-PE, other material on request
- Balancing: counterweight or spring cylinder
