DianJiang - Model DJ-2001 -Double Ring Infiltrator

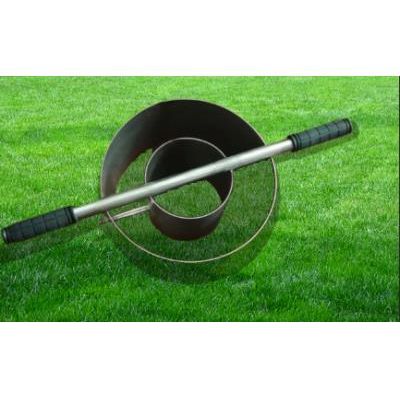

Overview: The DJ-2001 Double Ring Infiltration is used to measure the infiltration rate of water into the soil, and then calculate the vertical permeability coefficient of the soil. This infiltration rate can be calculated from recorded measurements and Darcy's law. Benefits and Features: Composed of 15cm and 30cm diameter stainless steel rings. A stainless steel tube is welded in the center of the double ring for stability. The vertical steel pipe handle is easy to operate. Use with the Mario tube, the automatic water flow and counting are more accurate and convenient.
