Downhole Progressive Cavity Pump

FromWeifang Subtor Rotating Precision Machinery Co.,Ltd.

SHARE

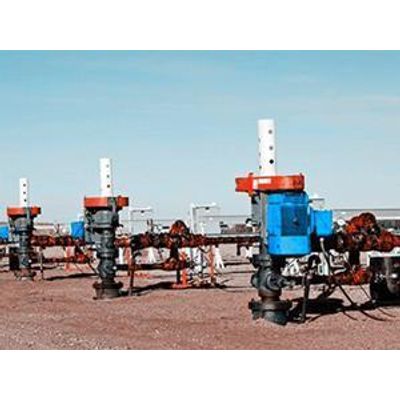

A downhole progressive cavity pump connects the stator and the rotor of the pump to the end of the tube and sucker rod. The ground drive equipment then rotates the rotor through use of the sucker rod, thereby lifting underground liquid to the surface. This cavity pump is often used lift crude oil under 8000mPa.s, making it useful for most thick oil wells, such as high sand wells, high gas wells, offshore oil field cluster well groups, horizontal wells and more.

Most popular related searches

progressive cavity pump

relative density

horizontal well

wear resistance

Technical Parameters
• Heat resistance: ≤150?;
• Fluid viscosity of well fluid: ≤8000mpa•s;
• GOR: <10m³/m³.
• Submergence: ≥100m
• Volume of H2S: ≤2.5%;
• Relative density of well fluid: ≤0.96,
• API gravity: >16
• Maximum depth: 2400m
• Well fluid sediment concentration: ≤10%
• Work efficiency: 1.5-170m³/day

Pump parts
Stator: the rubber component is made of high performance rubber (such as NBR, NBRH, HNBR, or FKM) that features an outstanding oil, water, high temperature and swelling resistance.

Rotor: The pump rotor is made of 45 steel, 42CrM alloy steel, 2Cr13, 304 stainless steel, 316 stainless steel and other steel materials. It is produced using high precision CNC screw processing equipment, then surface plated with chrome in order to achieve additional wear and corrosion resistance

Parameters
1.5 m3/day at 100rpm Downhole Progressive Cavity Pump
