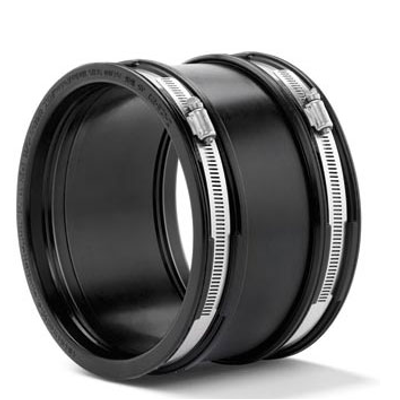

Mücher Dichtungen - Model MDC -Drain Coupling

SHARE

Drain Coupling MDC – for the connection of all pipe systems with same outside diameters. The Drain Coupling MDC connects all plain ended pipes with same outside diameters and materials.

Most popular related searches
drain coupling
pipe system
building management system
industrial drain
  • Coupling for same outside diameters
  • For above and below ground
  • Reliable and durable solution
  • Resistant to 0.6 bar

The Drain Coupling MDC can be used for applications above and below ground as well as inside and outside of buildings.

Drain Coupling MDC for the connection of all plain ended pipe systems with same outside diameters for applications above and below ground as well as inside and outside of buildings.

  • Manufacturer: MÜCHER DICHTUNGEN®, 50226 Frechen, T +49 2234 928 03-0, F -55
  • Pressure Tightness: 0.6 bar wasser / -0.3 vakuum
  • Jetting Resistance: 120 bar
  • Sealing Material: EPDM or Nitrile (NBR) rubber with lock in place profile according to DIN EN 681-1
  • Stainless Steel: AISI 304/1.4301, alternatively AISI 316/1.4404 according to DIN EN 10088-2
  • Temperature Resistance: -40°C to +120°C, temporary max. temperature +160°C
  • Standard/Approval: DIN EN 16397-2, CE15
