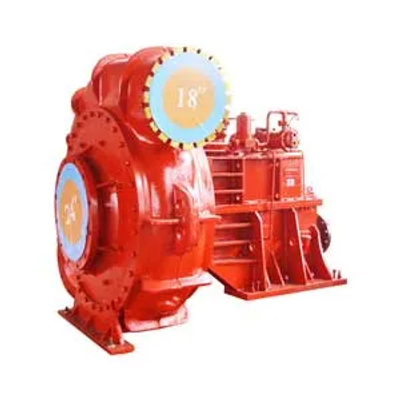

An-Pump - Model AWN Series -Dredger Pump
The AWN slurry pump for dredgers is single stage single suction, horizontal cantilevered centrifugal pump. Specially designed for mud, sand dredging application in rivers or seas. Robust structure design with front disassemble way guarantees its extra-long work-life and easy maintenance.
Most popular related searches
dredge pump
trailing suction hopper dredge
single stage horizontal centrifugal pump
trailing suction hopper
suction hopper dredge
cantilever centrifugal pump
cutter suction dredge
wear resistance
dredge
pump dredge
- Capacities: up to 25000 m³/h
- Head: up to 75 m
- Discharge: up to 40 inch
- HP: up to 1500kw
- The frame plate and the cover plate are made of high chrome anti-abrasive white cast iron.
- Wet parts like Impeller, volute liner, front liner, and black liner are made of strong wear-resistant alloy cast iron or wear-resisting alloy steel.
- The wet parts material could be changed according to the user`s requirement.
- The whole construction is suitable for dredging Ship
- 200AWN~500AWN type a single shell structure
- 600AWN~1000AWN is a double-shell structure to satisfy heavy-duty dredging work.
- Easy disassembly and installation, convenient maintenance
- Good NPSH, strong through-put capability
- Pump adaptive in the change of discharge distance.
- Excellent anti-wear performance, long service of wet parts
- Drive Type: Generally use belt-driven or Gear transmission
- The AWN Dredger Pump is mainly used for trailing suction hopper dredger and cutter suction dredger also could be used for river sand excavation and dredger for mining.
