Schramm - Model 685 Series -Drill Rig
FromSchramm, Inc.

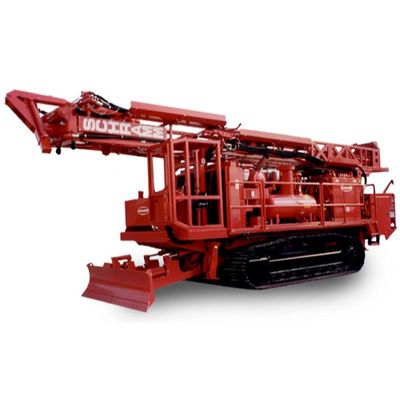

The Schramm 685 is a powerful and efficient reverse circulation drilling rig that can be truck or track mounted. High capacity single reduction top head drive rotation and efficient pipe handling systems make this series a match for the toughest drilling projects using down-the-hole hammer, air rotary, mud rotary and dual tube techniques
Most popular related searches
drilling rig
down the hole hammer
reverse circulation drilling rig
pipe handling
reverse circulation drill
reverse circulation drilling
truck tracking
tier II
pipe system
- Pullback: 77,000 lb (34,915 kg)
- Air Compressor
- 1150 cfm @ 500 psi (32.6 cu m/min. @ 35.5 bar)
- 1350 cfm @ 350 psi (38 cu m/min. @ 24.1 bar)
- Engine: Tier I/II deck engine, 875 bhp (643 kw) @ 1,800 rpm
- Configuration: Truck, Track or Grade Control Mounting
Features
• 45° sliding angle mast and swing out control panel
• Hands free power breakout and pipe handling
• 12 inch hands free table opening
T685i Truck/Crawler
- Pullback: 7,000 lb (34,915 kg)
- Air Compressor
- 1150 cfm @ 500 psi (32.6 cu m/min. @ 35.5 bar)
- 1350 cfm @ 350 psi (38 cu m/min. @ 24.1 bar)
- Engine: Tier II deck engine, 875 bhp (643 kw) @ 1,800 rpm
- Configuration: Truck or Track Mounting
Features
• 45° sliding angle mast and swing out control panel
• Hands free power breakout and pipe handling
• 12 inch hands free table opening
